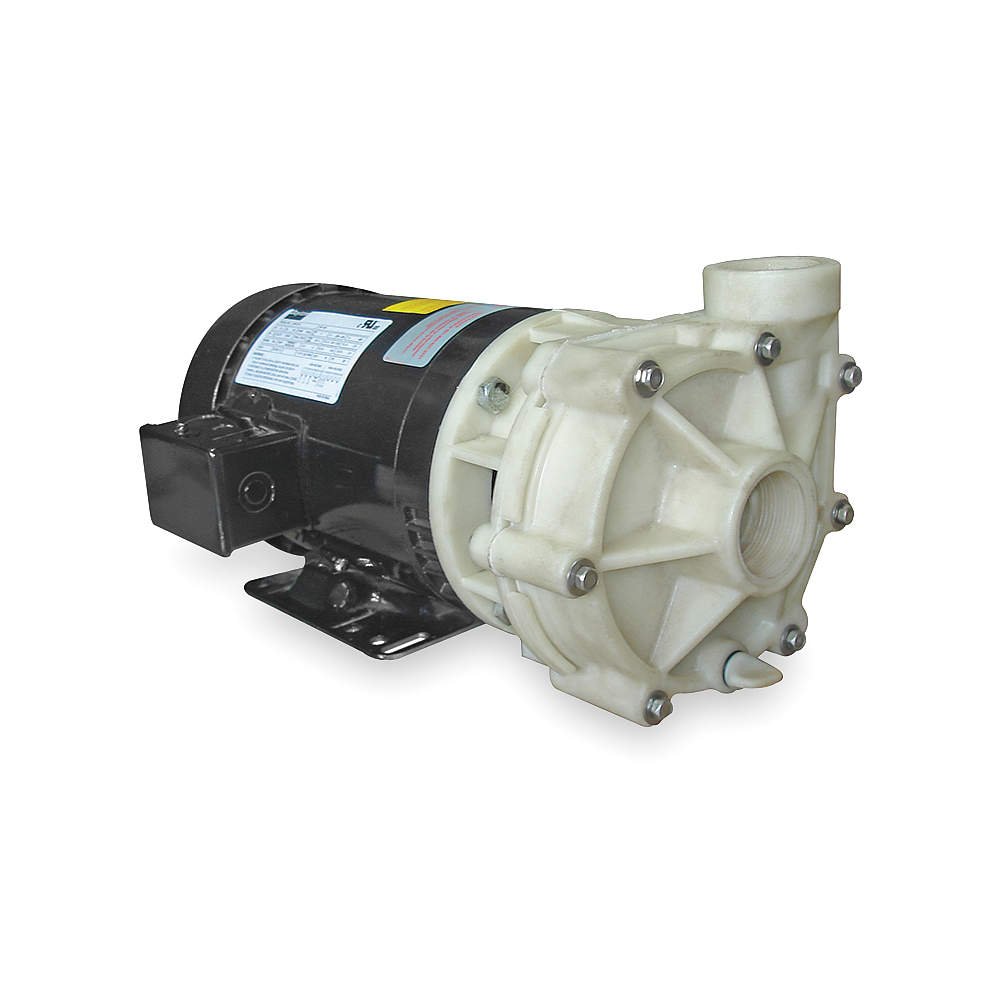

Dayton 2YEU3

Centrifugal Pump, HP 2, Phase 3, Inlet 1-1/2" NPT, Voltage 208-230/460, Amps 6.0-5.8/2.9, Housing Material Polypropylene, Impeller Material Polypropylene, Volute Material Polypropylene, Seal Material Buna-N, Carbon, Ceramic, SS, Seal Type Mechanical, Outlet 1-1/2" NPT, Motor Enclosure TEFC, Max. Head 83 ft., Max. GPM @ Head 105 gpm @ 10 ft., Best Efficiency GPM @ Head 58 gpm @ 60 ft., Min. GPM @ Head 16 gpm @ 80 ft., Best Efficiency Range GPM @ Head 53-83 gpm @ 75-30 ft., Length 15-7/8", Width 7-5/8", Height 7-1/2", Hz 60, NEMA/IEC Frame 56J, Motor RPM 3450, Service Factor 1.2, Wetted Materials Polypropylene, Buna-N, SS, Carbon, Ceramic, Shaft Material Stainless Steel, Screw Material Stainless Steel, Max. Liquid Temp. 140 Degrees F, Max. Specific Gravity 1.0, Max. Case Pressure 100 psi, Max. Fluid Viscosity 100 SSU, Inlet Pressure 75 psi, Impeller Type Closed, Bearing Type Ball, Duty Continuous, Port Rotation 90 Degrees Increments, Drain Plug Yes, Manufacturers Warranty Length 1 yr., AWARNING:?California ResidentsThis product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
