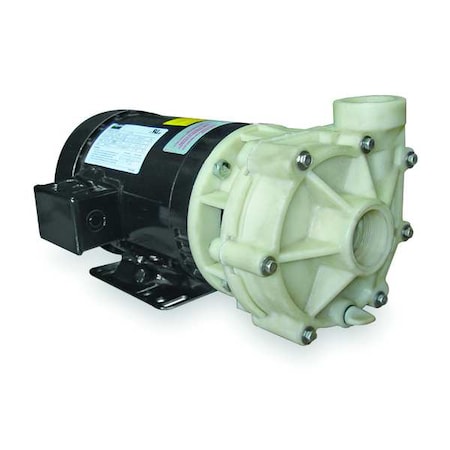

Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 95 ft, Flow Rate (Maximum) 123 gpm, Horsepower (Maximum) 3 hp, Housing Material Polypropylene, Impeller Design Closed, Impeller Material Polypropylene, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 140 Degrees F, Phase Three, Shut Off Pressure (Maximum) 85 ft of head, Viscosity (Maximum) 100 SUS, Flow Rate @ 10 ft of Head (Maximum) 123 gpm
Attributes
| Key ^ | Value |
|---|---|
| Best Efficiency GPM @ Head | 80 gpm @ 60 ft |
| Cord Length | Not Applicable |
| Discharge Pipe Size, Intake Pipe Size | 1 1/2 in |
| Height | 7 1/2 in |
| Housing Material | Polypropylene |
| HP | 3 hp |
| Inlet, Outlet | 1-1/2 in NPT |
| Item | Chemical Resistant Centrifugal Pump |
| Length | 16 29/32 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Dia. Solids | 1/4 in |
| Max. GPM @ Head | 123 gpm @ 10 ft |
| Max. Head | 95 ft |
| Motor Enclosure | TEFC |
| Overall Height | 7.5 in |
| Overall Length | 18.1 in |
| Overall Width | 10 in |
| Phase | 3 |
| Shaft Outer Diameter | 5/8 in |
| Solid Diameter (Maximum) | 0.25 in |
| Voltage | 230/460 |
| Width | 7 5/8 in |
