Dayton 2ZWP7

B001QRHF5Y

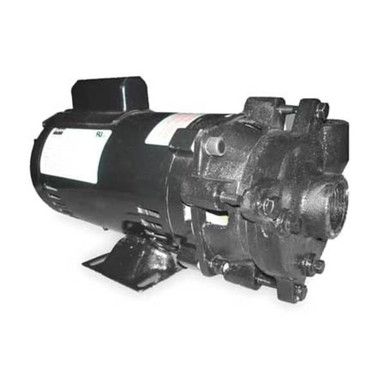

Dayton 2ZWP7 Pump, Centrifugal, 1 1/2 HP, 1 Ph, 115/230V

Dayton 2ZWP7 Pump, Centrifugal, 1 1/2 HP, 1 Ph, 115/230Vzoom

Attributes

Key Value
Best Efficiency Flow72 gpm
Best Efficiency Head44 ft
BrandDayton
Compatible Discharge Pi.1 1/4 in
Compatible Intake Pipe .1 1/2 in
Compatible with Media T.Non-Flammable Liquids
Current Stock27
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.115 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.109 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.104 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.94 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.81 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.64 gpm
Flow Rate @ 60 ft of He.40 gpm
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frequency60 Hz
Height6 in
Horsepower1 1/2 hp
Housing Material - PumpsCast Iron
HP - Pumps1 1/2 hp
Impeller DesignSemi-Open
Impeller MaterialCast Iron
IncludesManual
Inlet1-1/2" NPT
Inlet Size - Pumps1-1/2 in NPT
Intake and Discharge Si.1 1/2 in , 1 1/4 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Length15 in
Length (Straight Wirewa.15 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Dia. Solids1/2 in
Max. Head67 ft
Max. Pressure - Pumps29 psi
Maximum Feet of Head67 ft
Maximum Flow Rate115 gpm
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Minimum Flow Rate40 gpm
Minimum Media Temperatu.40 Degrees F
Motor EnclosureOpen Dripproof
Motor Enclosure - PumpsOpen Dripproof
Motor Frame Designation56J
Motor TypeCapacitor-Start
Mpn2ZWP7
Nameplate Voltage115/208-230V AC
Outlet Size - Pumps1-1/4 in NPT
Overall Height6 in
Overall Length14.4 in
Overall Width7.1 in
PhaseSingle
Phase - Pumps1
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialCast Iron
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialBuna-N
Seal TypeMechanical
Shaft Material304 Stainless Steel
Shut Off Pressure (Maxi.29 psi
SKUZO-G0607984
Solid Diameter (Maximum)0.5 in
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735241813
Voltage - Pumps120/208 to 240V AC
Wetted MaterialBuna-N, Carbon, Cast Ir.
Width7 1/8 in
