Dayton 2ZWT2

B001QRP43Y

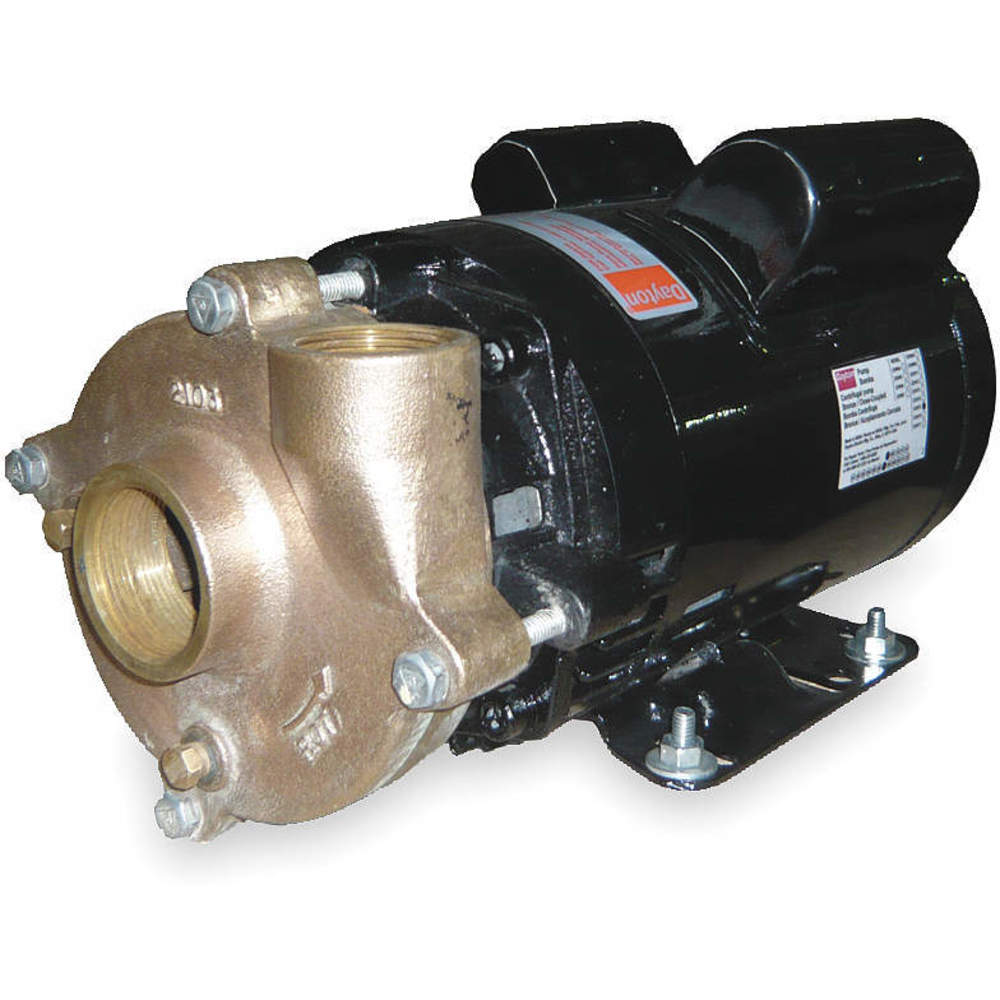

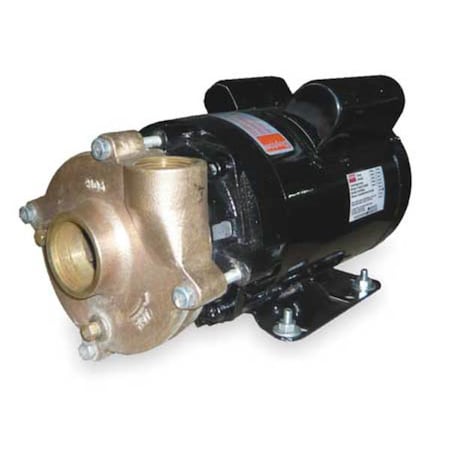

Dayton 2ZWT2 Pump, Centrifugal, 1 1/2 HP, 1 Ph, 115/230V

Dayton 2ZWT2 Pump, Centrifugal, 1 1/2 HP, 1 Ph, 115/230Vzoom

Attributes

Key Value
Agency Compliancec UL us
Amps17/9.0-6.4
Bearing TypeBall
Best Efficiency Flow72 gpm
Best Efficiency GPM @ H.72 gpm @ 44 ft
Best Efficiency Range G.55 to 99 gpm @ 55 to 25.
BrandDayton
Compatible with Media T.Non-Flammable Liquids
Current Stock6
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 10 ft of He.115 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 15 ft of He.109 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 60 ft of He.40 gpm
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.115
GPM of Water @ 15 Ft. o.109
GPM of Water @ 20 Ft. o.104
GPM of Water @ 25 Ft. o.99
GPM of Water @ 30 Ft. o.94
GPM of Water @ 40 Ft. o.81
GPM of Water @ 50 Ft. o.64
GPM of Water @ 60 Ft. o.40
Height6 in
Horsepower1 1/2 hp
Housing MaterialBronze, Brass
Housing Material - PumpsBrass, Bronze
HP1-1/2
HP - Pumps1 1/2 hp
Hz60
Impeller MaterialBrass, Bronze
Impeller TypeSemi Open
IncludesManual
Inlet1-1/2" NPT
Inlet Pressure200 psi
Inlet Size - Pumps1-1/2 in NPT
Intake and Discharge Si.1 1/2 in , 1 1/4 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Length15 in
Length (Straight Wirewa.15 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids1/2 in
Max. GPM @ Head115 gpm @ 10 ft
Max. Head67 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure29.00 psi
Max. Pressure - Pumps29 psi
Max. Specific Gravity1.0
Maximum Feet of Head67 ft
Maximum Flow Rate115 gpm
Maximum RPM3,450 RPM
Min. GPM @ Head40 gpm @ 60 ft
Minimum Flow Rate40 gpm
Motor EnclosureOpen Dripproof (ODP)
Motor Enclosure - PumpsOpen Dripproof
Motor Enclosure BroadODP
Motor Enclosure TypeODP
Motor RPM3450
Motor TypeCapacitor-Start
Mpn2ZWT2
Nameplate Voltage115/208-230V AC
Nominal Voltage115/208-230V AC
Outlet1-1/4" NPT
Outlet Size - Pumps1-1/4 in NPT
Overall Height6 in
Overall Length14.4 in
Overall Width7.1 in
PhaseSingle
Phase - Pumps1
Phase Broad1
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialBuna-N
Seal TypeMechanical
Shaft Material304 Stainless Steel
Shut Off Pressure (Maxi.29 psi
SKUZO-G2434957
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735241943
Voltage115/208-230
Voltage - Pumps120/208 to 240V AC
Wetted MaterialsBrass, Bronze, Buna-N, .
Width7 1/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2434957726.831In StockDayton54.0726.83 @ 1
AmazonTPB001QRP43Y836.851In Stock5Dayton836.85 @ 1
AmazonSCB001QRP43Y836.851In StockDayton836.85 @ 1
thumbzoomsimsupply.comZO-G2434957860.3916Dayton860.39 @ 1
thumbzoomsustainablesupply.comC1740496957.131In StockDayton54.0957.13 @ 1
thumbzoomRaptor SuppliesAC4HMW1194.2907211In StockDAYTON1194.290721 @ 1
