Description:

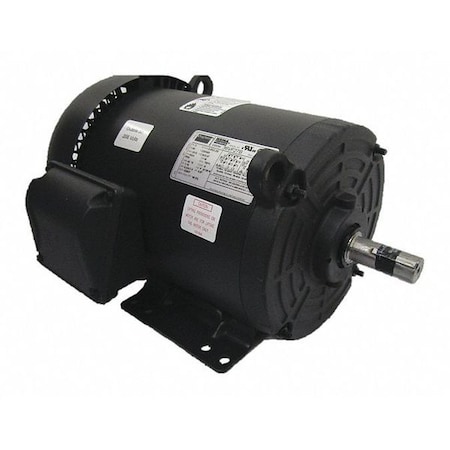

General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 3,510, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 7.6/3.8, 182/4 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
Attributes
| Key | Value |
|---|---|
| Frame | 182/4 |
| HP | 3 |
| Includes | Conduit Box |
| Item | General Purpose Motor |
| Length Less Shaft | 13 5/8 in |
| Manufacturers Warranty Length | 1 yr |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 3,510 |
| Overall Length | 15 7/8 in |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Standards | CE, CSA, UL |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
