- mpn36VF56
- brandname: Dayton
- manufacturername: Dayton

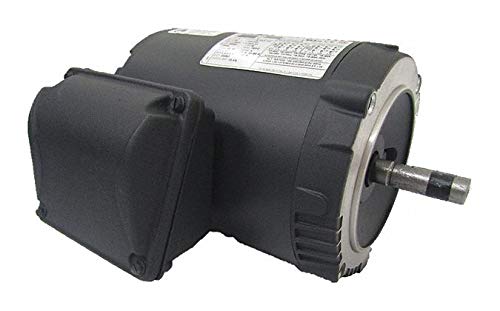

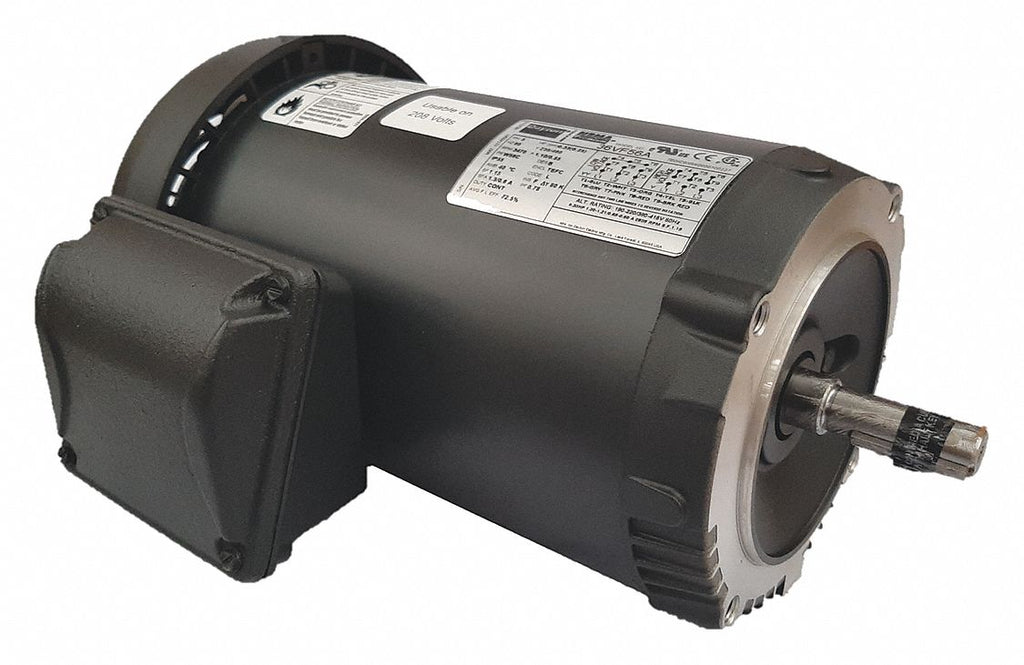

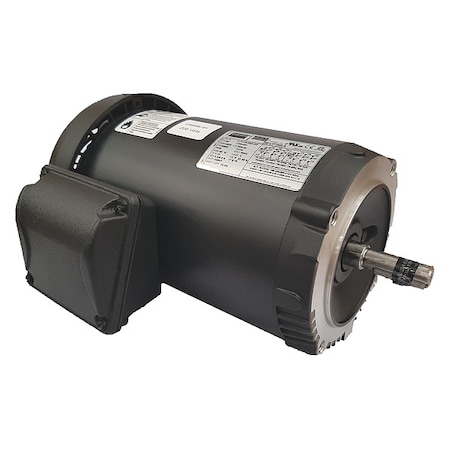

Dayton 1/3 HP General Purpose Motor,3-Phase,3500 Nameplate RPM,Voltage 208-230/460,Frame 56C
- Brand: CAI - DAYTON
- PartNumber: 36VF56
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 1.2-1.1/0.55 |
| Bearings | Ball |
| Brand | Dayton |
| Current Stock | 3 |
| Duty Cycle | Continuous |
| Efficiency | 69.5% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Footnotes | 2, 15, 56 |
| Frame | 56C |
| HP | 1/3 |
| Hz | 60 |
| Insulation Class | F |
| International Shipping | No |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 9 11/16 in |
| Manufacturers Warranty . | 1 yr |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Diameter | 6-1/2" |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 9-21/32" |
| Motor Thermal Protection | None |
| Mounting | C-Face |
| Mpn | 36VF56 |
| Nameplate RPM | 3,500 |
| Number of Speeds | 1 |
| Overall Length | 11-9/16", 11 9/16 in |
| Phase | 3 |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3500 |
| RPM Range | 3,001-3,600 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 18 lbs. |
| SKU | ZO-G1860428 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735275887 |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1860428 | 191.99 | 1 | 2 | | Dayton | 17.9 | 191.99 @ 1 |
 | simsupply.com | ZO-G1860428 | 227.3 | 1 | 3 | | Dayton | | 227.3 @ 1 |
 | sustainablesupply.com | C2776878 | 237.89 | 1 | In Stock | | Dayton | 17.9 | 237.89 @ 1 |
| emotorpro.com | 36VF56 | 245.3 | 1 | In Stock | | Dayton | 18.0 | 245.3 @ 1 |
 | Raptor Supplies | AH7KNX | 293.3602425 | 1 | In Stock | | DAYTON | | 293.3602425 @ 1 |
