- mpn36VF68
- brandname: Dayton
- manufacturername: Dayton

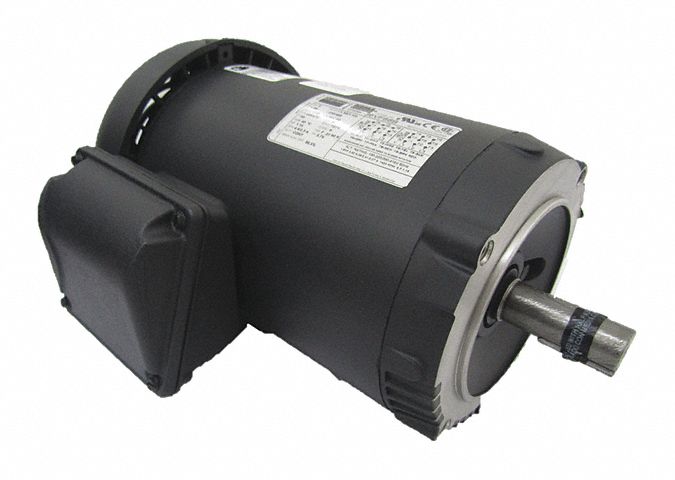

Dayton 1-1/2 HP General Purpose Motor,3-Phase,1760 Nameplate RPM,Voltage 230/460,Frame 143/5TC
- Brand: CAI - DAYTON
- PartNumber: 36VF68
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 4.7-4.3/2.1 |
| Bearings | Ball |
| Brand | Dayton |
| Capacitor Required | No |
| CC Number | CC029A |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Footnotes | 2, 15, 53 |
| Frame | 143/5TC |
| Frame Material | Rolled Steel |
| Full Load Amps | 4.3/2.1 |
| Green Certification or . | NEMA Premium Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1 1/2, 1-1/2 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 11 3/8 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 11-11/32" |
| Motor Thermal Protection | None |
| Mounting | C-Face |
| Mpn | 36VF68 |
| Nameplate RPM | 1,760 |
| No. of Speeds | 1 |
| Nominal Efficiency | 86.5 % |
| Number of Speeds | 1 |
| Overall Length | 13-5/8", 13 5/8 in |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1760 |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 41 lbs. |
| SKU | ZO-G0692058 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735276006 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0692058 | 381.84 | 1 | In Stock | | Dayton | 40.1 | 381.84 @ 1 |
 | simsupply.com | ZO-G0692058 | 431.14 | 1 | In Stock | | Dayton | | 431.14 @ 1 |
 | sustainablesupply.com | C2777284 | 495.14 | 1 | In Stock | | Dayton | 40.1 | 495.14 @ 1 |
| emotorpro.com | 36VF68 | 537.62 | 1 | In Stock | | Dayton | 41.0 | 537.62 @ 1 |
 | Raptor Supplies | AH7KPJ | 578.3515335 | 1 | In Stock | | DAYTON | | 578.3515335 @ 1 |
