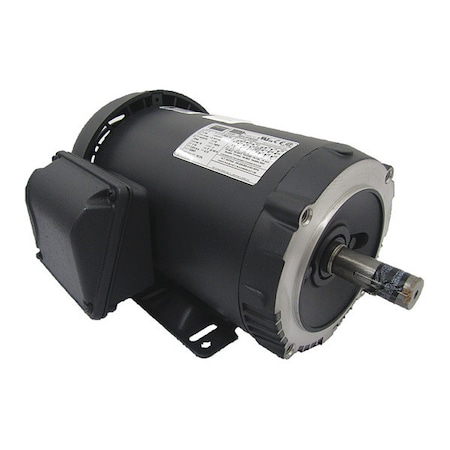

GP Motor, TEFC, 1 HP, 1145 rpm, 7/8in. dia.
Imagezoom

mpn:
brand:
manufacturer:
MPN:
Description:
General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,145, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.1/1.50, 143/5TC Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
Weight:
2.625
Weight:
2.625 LB
Preferred Price:
759.31
Price:
759.31
Min Simple Price:
428.99
Absolute Min Price:
609.16
Min Price:
609.16
Dimensions:
[18.0, 12.0, 10.0]
qty:
21
simpleSku:
MTI3MQ:::36VF85
sku:
MTI3MQ::ZQ:36VF85@y0
condition:
11
seller:
Zoro
amzMan:
dayton
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps3.4-3.1/1.5
BearingsBall
BrandDayton
Current Stock, Phase3
Duty CycleContinuous
Efficiency82.5%
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Frame143/5TC
HP, Number of Speeds1
Hz60
IncludesConduit Box
Insulation ClassF
International ShippingNo
ItemGeneral Purpose Motor
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft11 3/8 in
Manufacturers Warranty Length1 yr
Maximum Ambient Temperature40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor, Service Factor (SF)1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length11-11/32"
Motor Thermal Protection, Thermal ProtectionNone
MountingC-Face/Rigid
Mpn36VF85
Nameplate RPM1,145
Overall Length13-5/8", 13 5/8 in
Product Type3 Phase
RotationReversible
RPM1145
RPM Range1,101-1,200
Shaft Dia.7/8 in
Shaft Diameter7/8" Keyed
Shaft Length2 1/4 in, 2-1/4"
Ship Weight42 lbs.
SKUZO-G1810965
StandardsCE, CSA, UL
SubCategoryMotors/Ac Motors
UPC190735276174
Voltage230/460V AC
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Volts208-230/460

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomZoroG1810965428.99428.9918Dayton41.5428.99 @ Qty: 1+
emotorpro.com36VF85477.95477.951In StockDayton42.0477.95 @ Qty: 1+
thumbzoomsimsupply.comZO-G1810965507.75507.7513Dayton507.75 @ Qty: 1+
thumbzoomsustainablesupply.comC2776372528.89528.891In StockDayton41.5528.89 @ Qty: 1+
thumbzoomRaptor SuppliesAH7KQA652.2083685652.20836851In StockDAYTON652.2083685 @ Qty: 1+
