CAI - DAYTON 4C329

B07HLV7PNK

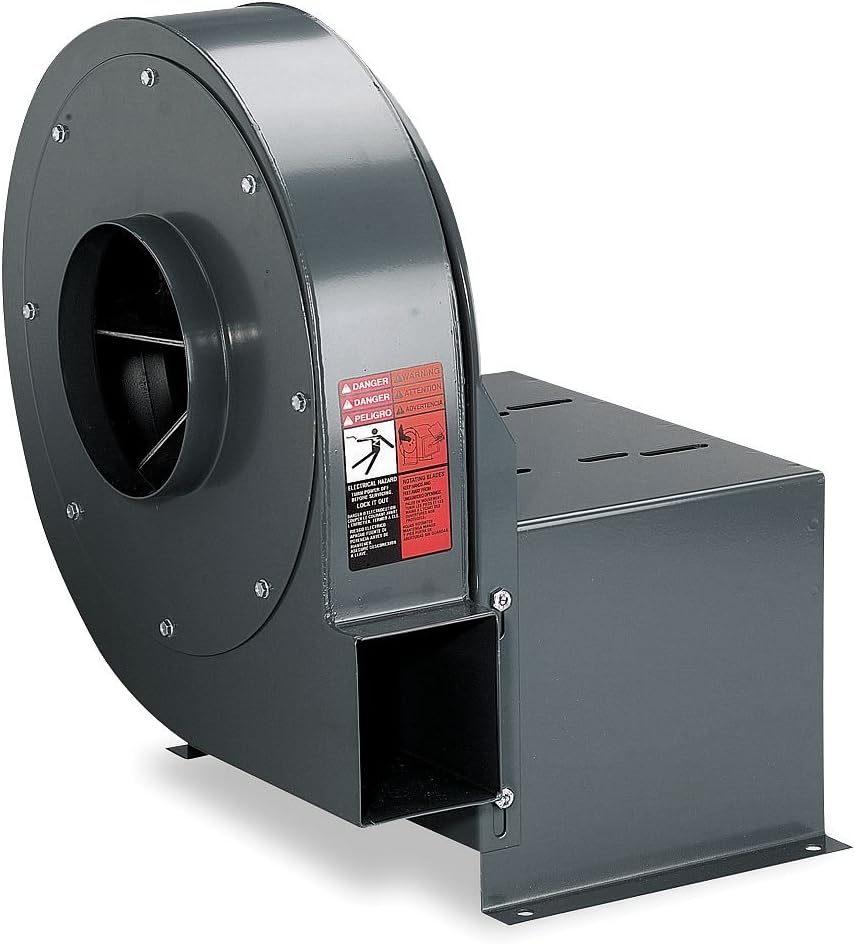

Dayton High Pressure Blower Less Motor, 12-1/2" Wheel Dia, 18-7/8"H ?

Dayton High Pressure Blower Less Motor, 12-1/2" Wheel Dia, 18-7/8"H ?zoom

Attributes

Key Value
Agency ComplianceAMCA AIR
ApplicationHandling Long Stringy M.
ASINB01DOAY9FY
AssemblyUnassembled
Batteries Required?No
Bearing TypeBall in Motor
BrandDAYTON
ColorSilver
Current Stock197
Depth (In.)17 in
Dimension A (In.)17 in
Dimension B (In.)11 1/4 in
Dimension C (In.)5 in
Dimension D (In.)4 in
Dimension E (In.)8 in
Dimension F (In.)9 3/4 in
Dimension G (In.)3/4 in
Dimension H (In.)8 1/4 in
Dimension J (In.)7 1/2 in
Dimension K (In.)9 in
Dimension L (In.)9 5/8 in
Dimension O (In.)17 in
Dimension P (In.)7 in
Dimension R (In.)10 in
Dimension S (In.)7 1/8 in
Discharge Height (In.)5 in
Discharge PositionBottom Angular Down, Bo.
Discharge Width (In.)4 in
Drive TypeDirect Drive
Electrical ConnectionGround Wire
Featuresfor Proper Installation.
For Air TypeDusty
For Ventilation TypeExhaust
Height (In.)18 7/8 in
Housing ColourGray
Housing FinishGray Polyester Epoxy
Housing MaterialSteel
Housing Material FinishGray Polyester Epoxy
Housing Material Gauge16 ga
Includes MotorNo
Inlet Dia. (In.)7 in
Inlet Diameter7 in
International ShippingNo
ItemHigh Pressure Blower
Item Package Quantity1
Lead TimeExpected to ship in 1-2.
ManufacturerDAYTON
Manufacturer Warranty L.1 yr Limited
Max. Ambient Temp. (F)104 Degrees F
Max. Inlet Temp. (Deg. .180 Degrees F
Maximum Airflow1,127 cfm
Maximum Ambient Tempera.104 Degrees F
Maximum Inlet Air Tempe.180 Degrees F
Maximum Motor Horsepower3 hp
Maximum Static Pressure8 in wc
Minimum Airflow638 cfm
Motor Frame Designation145T
Mount TypeMotor Mount
Mpn4C329
Number of Discharge Pos.8
Number of Inlets1
Outlet DiameterNot Applicable
Outlet Height5 in
Outlet ShapeRectangular
Outlet Size (H x W)5 in x 4 in
Outlet Width4 in
Overall Depth17 in
Overall Height18 7/8 in
Overall Width18 5/8 in
Part Number4C329
RotationCW/CCW
SKUZO-G2422953
Sound Level90 dBA @ 5 ft
StandardsAMCA Certified, NEC, OS.
TypeLess Motor
UPC190735321980
Wheel Bore (In.)7/8 in
Wheel Bore Diameter7/8 in
Wheel Dia. (In.)12 1/2 in
Wheel Diameter12 1/2 in
Wheel MaterialAluminum
Wheel TypeRadial
Wheel Width3 in
Wheel Width (In.)3 in
Width (In.)18 5/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2422953324.991166Dayton38.0324.99 @ 1
thumbzoomAmazonSCB01DOAY9FY364.511In StockDAYTON364.51 @ 1
thumbzoomRaptor SuppliesAD6WFB391.84347151In StockDAYTON391.8434715 @ 1
thumbzoomsimsupply.comZO-G2422953416.641197Dayton416.64 @ 1
thumbzoomsustainablesupply.comC1136990430.581In StockDayton38.0430.58 @ 1
grainger.caDMD4C329618.31413141In StockDAYTON37.0618.3141314 @ 1
