Attributes

Key Value
ApplicationPrinting Press, Conveyo.
BearingsBall
Brake TypeNone
Dimension A10.78 in
Dimension AA6.72 in
Dimension AB6 in
Dimension B7.13 in
Dimension BA1"
Dimension C7 in
Dimension D6 in
Dimension D110.14"
Dimension D23"
Dimension E3.22 in
Dimension F5.2"
Dimension H3.25"
Dimension L2.5"
Dimension N0.44 in
Dimension S1.38"
Dimension U9 7/100"
Dimension X2"
Dimension Z5"
EnclosureTEFC
Frequency50 Hz, 60 Hz
Full Load Amps11.2/5.6
Gear Case MaterialDie Cast Aluminum
Gear MaterialHardened Steel/Forged B.
Gear Ratio21:1
Gear TypeWorm
Gearmotor Brake TypeNone
Gearmotor EnclosureTotally Enclosed Fan-Co.
Gearmotor Mounting Posi.All Angle
Gearmotor Phase1
Gearmotor RotationCW/CCW
Gearmotor Shaft Orienta.Right Angle
Gearmotor Shaft TypeSingle Left
Gearmotor TypeAC Gearmotor
Gearmotor Voltage115/208-230V AC
GearsHardened Steel Worm, Fo.
Height (Dimension O)10.66"
HousingAluminum/Cast Iron
Housing Mount Hole Size0.406 in
Hz60/50 Hz
IncludesCapacitor
Input Horsepower0.75 hp
Input HP3/4 hp
Insulation ClassF

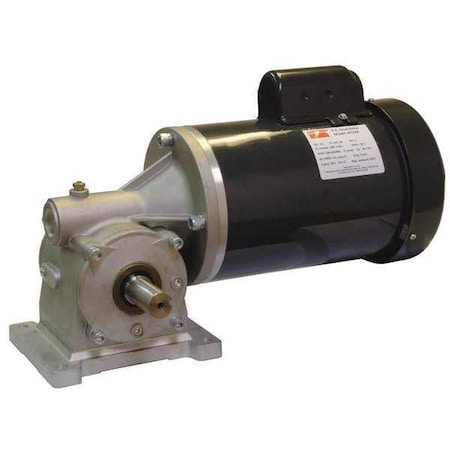

ItemAC Gearmotor
Keyway Depth1 1/4 in
Keyway Size1/4" Square x 1-1/4"
Keyway Size Type1/4 sq in x 1-1/4 in
Keyway TypeWoodruff
Keyway Width1/4 in
LubricationGear Oil
Max. Ambient Temp.40 Degrees C
Max. Torque456.0 in-lb
Maximum Torque456 in-lb
Motor EnclosureTotally Enclosed Fan-Co.
Motor Insulation ClassF
Motor TypeCapacitor-Start
Mount Hole Center-to-Ce.6 in
Mount Hole Center-to-Ce.5 in
Mount TypeAny Position
MountingAll Position
Nameplate RPM84 RPM
Operating Voltage115/208-230V AC
Output Shaft Diameter1 in
Output Shaft Height3.25 in
Output Shaft Length2 1/4 in
Overall Height10.66 in
Overall Length17.5 in
Overall Width10.14 in
Overhung Load882 lb
Phase1
RotationReversible
RPM Range76 to 100
SealsOil Seals on Axle Shaft
ShaftSingle Output
Shaft Dia. (Dimension U)1"
Shaft Length (Dimension.2.25"
Shaft OrientationRight Angle
StandardsUL Recognized
Starting Torque1,260 in-lb
Thermal ProtectionNone
Voltage115/208-230
