| Body Dia. | 5 5/8 in |
| Country of Origin (subject to change) | Multiple |
| Duty, Duty Cycle | Continuous |
| Frame | 48Z |
| Frame Material, Motor Frame Material | Rolled Steel |
| Full Load Amps | 8.6/4.3-4.2 |
| HP | 1/2 |
| Hz | 60 |
| Ins. Class | B |

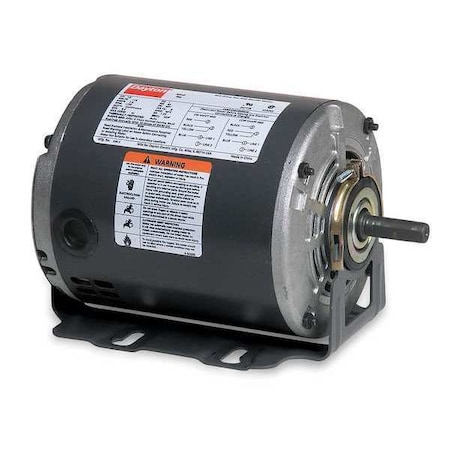

| Item | Belt Drive Motor |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1,725 |
| No. of Speeds | 1 |
| Phase | Single |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 7/8 in |
| Standards | CSA Certified, UL Recognized |
| Voltage | 115/208-230V AC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
