mpn:
brand:
manufacturer:
MPN:
Description:

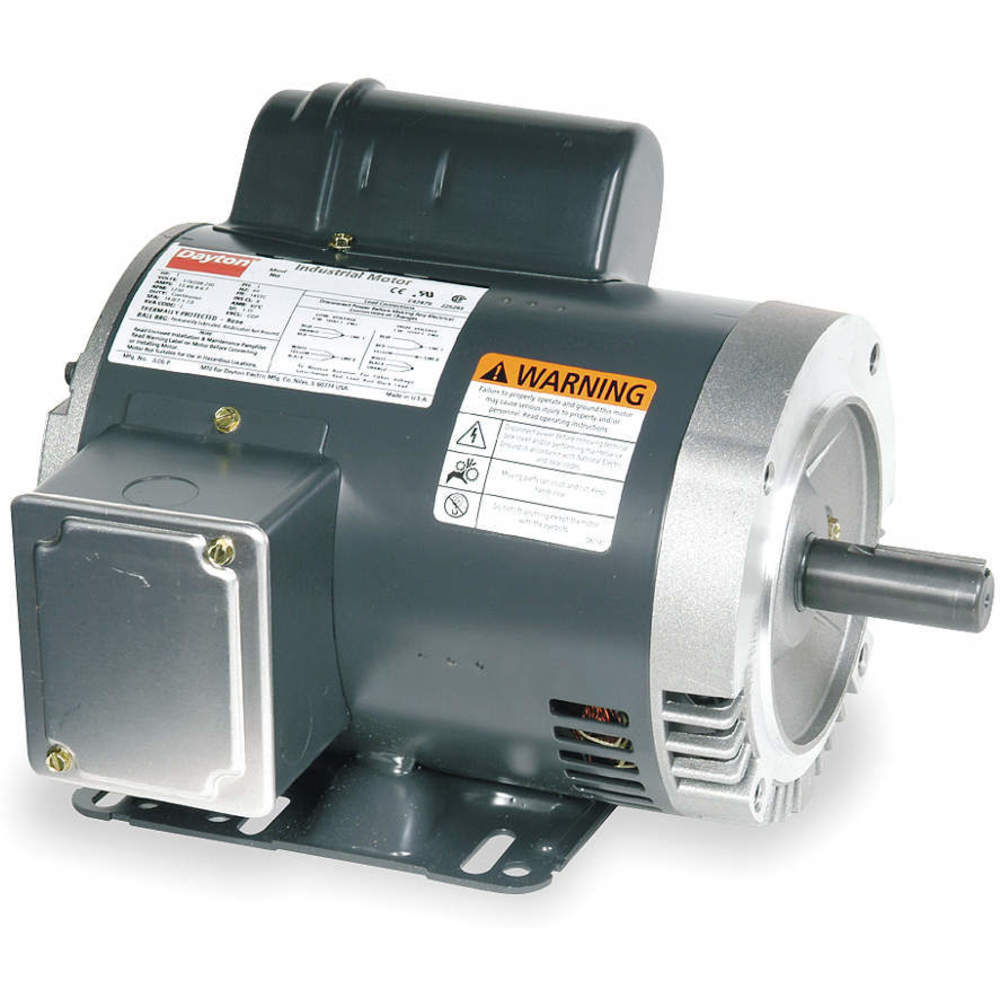

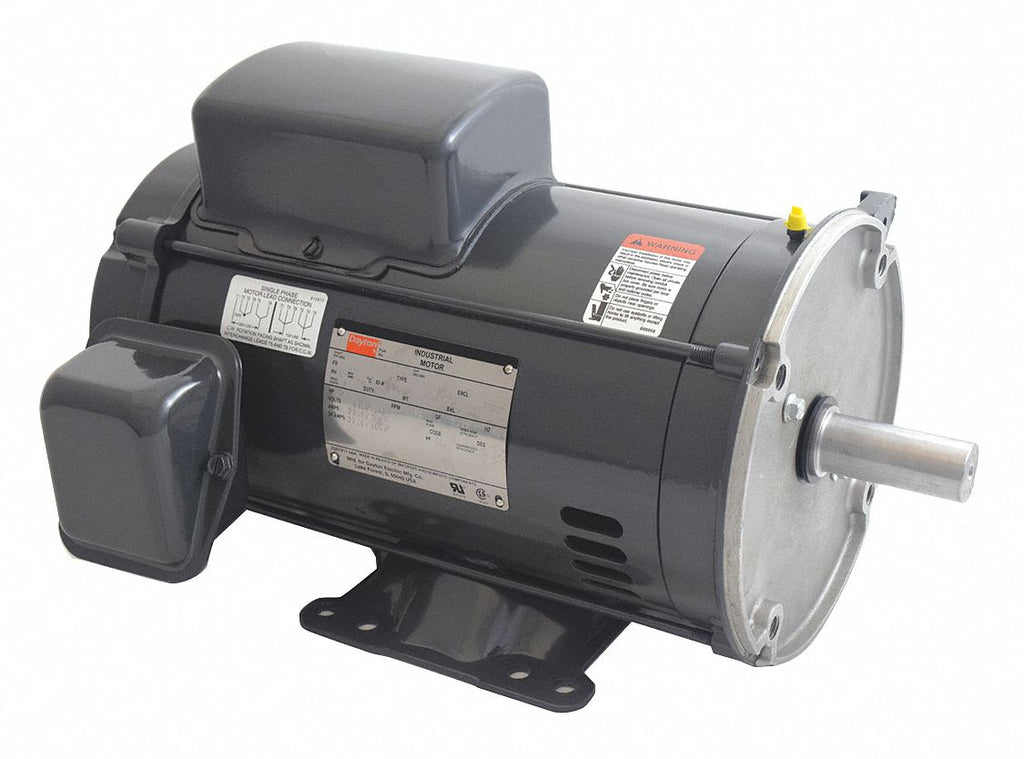

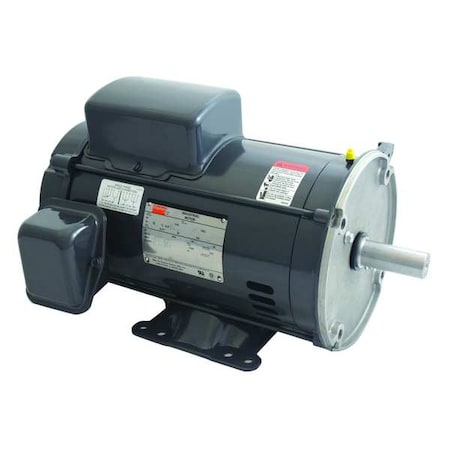

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 33.0/16.5, 184TC Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed, Motor Frame Material Steel
Weight:
75.0
Weight:
4.6875 LB
Preferred Price:
1638.24
Price:
1638.24
Min Simple Price:
925.56
Absolute Min Price:
1314.29
Min Price:
1314.29
Dimensions:
[19.0, 14.0, 14.0]
qty:
21
simpleSku:
ODEwOA:::4K815
sku:
ODEwOA::RT:4K815@y0
condition:
11
seller:
AmazonTP
amzMan:
cai - dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 33.8/16.9 |
| Bearings, Motor Bearings | Ball |
| Brand | Dayton |
| Capacitor | Start Capacitor Included |
| Current Stock | 2 |
| Duty Cycle | Continuous |
| Enclosure Material, Motor Frame Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 184TC |
| Full Load Amps | 33.0/16.5 |
| HP | 3 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class, Insulation Class | F |
| International Shipping | No |
| Item | General Purpose Motor |
| Length Less Shaft | 11 5/16 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Service Factor, Service Factor (SF) | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 11-5/16" |
| Motor Thermal Protection, Thermal Protection | None |
| Mounting | C-Face/Rigid |
| Mpn | 4K815 |
| Nameplate RPM | 1,750 |
| No. of Speeds, Number of Speeds, Phase | 1 |
| Nominal Efficiency | 82.7 % |
| Overall Length | 14-4/16", 14 1/4 in |
| Phase | Single |
| Product Type | Capacitor Start |
| Rotation | Reversible |
| RPM | 1740 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 1/8 in |
| Shaft Diameter | 1-1/8" Keyed |
| Shaft Length | 2-3/4", 2 3/4 in |
| Ship Weight | 75 lbs. |
| SKU | ZO-G0499073 |
| Standards | CSA (225293), UL (E47479), UL Recognized, CSA Certified, CE |
| SubCategory | Motors/Ac Motors |
| UPC | 190735327586 |
| Voltage | 115/230V AC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC |
| Volts | 115/230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B000LE40GU | 925.56 | 925.56 | 1 | In Stock | 5 | DAYTON | 925.56 @ Qty: 1+ | ||
| AmazonSC | B000LE40GU | 925.56 | 925.56 | 1 | In Stock | Dayton | 925.56 @ Qty: 1+ | |||
 | Zoro | G0499073 | 1253.99 | 1253.99 | 1 | 5 | Dayton | 75.0 | 1253.99 @ Qty: 1+ | |
 | sustainablesupply.com | C2776581 | 1291.53 | 1291.53 | 1 | In Stock | Dayton | 75.0 | 1291.53 @ Qty: 1+ | |
| grainger.ca | GGE4K815 | 1397.00235656 | 1397.00235656 | 1 | In Stock | DAYTON | 75.0 | 1397.00235656 @ Qty: 1+ | ||
 | simsupply.com | ZO-G0499073 | 1484.0 | 1484.0 | 1 | In Stock | Dayton | 1484.0 @ Qty: 1+ | ||
| emotorpro.com | 4K815 | 1538.7 | 1538.7 | 1 | In Stock | Dayton | 75.0 | 1538.7 @ Qty: 1+ | ||
 | Raptor Supplies | AD8FWP | 1592.7042105 | 1592.7042105 | 1 | In Stock | DAYTON | 1592.7042105 @ Qty: 1+ |
