| Country of Origin (subject to change) | Mexico |
| Duty | Continuous |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Full Load Amps | 5.7/2.8 |
| HP | 1/3 |
| Hz | 60/50 |
| Ins. Class | B |

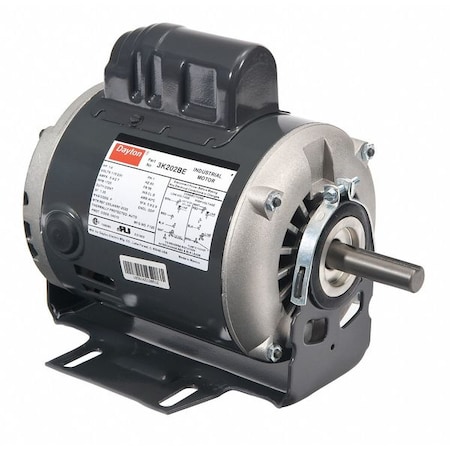

| Item | General Purpose Motor |
| Length Less Shaft | 8-15/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1725 |
| No. of Speeds | 1 |
| Nominal Efficiency | 62.1% |
| Overall Length | 10-13/16" |
| Phase | 1 |
| RPM Group | 1701-1800 |
| RPM Range | 1701-1800 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-7/8" |
| Standards | UL (E47479), CSA (156060) |
| Voltage | 115/230 |
| Voltage Compatibility | 115, 120, 230, 240, 115/230, 120/240 |
