Dayton 4RN86

B007IA7WM4

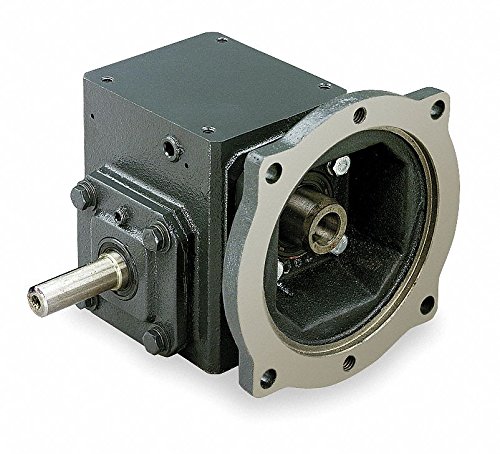

Dayton Standard Cast Iron C-Face Speed Reducer, Single Output, 388 lb. Overhung Load 4RN86-1 Each

Dayton Standard Cast Iron C-Face Speed Reducer, Single Output, 388 lb. Overhung Load 4RN86-1 Eachzoom

Attributes

Key Value
BearingsBall
Bore Dia.5/8"
BrandDayton
Current Stock3
Dimension U3/4 in
DutyStandard
FinishPowdered Epoxy Paint
Frame56c
Gear MaterialHardened and Ground Ste.
Gear TypeWorm
Housing MaterialCast Iron
Input RPM1750 rpm, 1750
Input Shaft Diameter5/8 in
International ShippingNo
ItemSpeed Reducer
Lead TimeExpected to ship in 1-2.
LubricationKluber Food Grade, Klub.
Max. Input HP3/4, 0.75
Max. Output Torque233.00 in.-lb.
Max. Torque (In.-Lbs.)233
MountingAny Position Except Inp.
Mpn4RN86
NEMA/IEC Frame56c
Nominal Output RPM175 RPM, 175
Nominal Ratio10:1
Number of Stages1
Oil SealDouble Lip
Output Shaft Dia.3/4 in
Output Shaft Diameter3/4 in
Output Torque @ 1 HP233 in-lbs
Output Torque @ 1/2 HP153 in-lb, 153 in-lbs
Output Torque @ 1/2 HP .153
Output Torque @ 1/3 HP100 in-lb
Output Torque @ 1/3 HP .100
Output Torque @ 1/40 HP3,600 in-lbs, 3600 in.-.
Output Torque @ 3/4 HP233 in-lb, 233 in-lbs
Output Torque @ 3/4 HP .233
Overhung Load388 lb.
Overhung Load (Lb.)388
Pinion MaterialHardened Steel
Prop 65WARNING: Cancer and Rep.
Reducer Model No.83938
RotationCW/CCW, Forward/Reverse
Seal TypeDouble Lip
Shaft AssemblyLeft
Shaft OrientationRight Angle
Ship Weight21 lbs.
Single/Double Output/Un.Single Output
SKUZO-G0354514
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA
SubCategoryPower Transmission
TypeC-Face
UPC190735332696
Worm Center Distance1.54 in, 1.54", 1.53"
Worm Gear MaterialBronze

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0354514523.99111Dayton20.35523.99 @ 1
thumbzoomsimsupply.comZO-G0354514637.9213Dayton637.92 @ 1
AmazonTPB000LEYJZM722.461In Stock3Dayton722.46 @ 1
AmazonUNKB007IA7WM4730.961In StockDayton Electric Manufacturing Co.730.96 @ 1
thumbzoomsustainablesupply.comC2879625741.791In StockDayton20.35741.79 @ 1
grainger.caWWG4RN86765.572910741In StockDAYTON20.35765.57291074 @ 1
thumbzoomRaptor SuppliesAD9FTB860.35951In StockDAYTON860.3595 @ 1
emotorpro.com4RN861072.961In StockDayton21.01072.96 @ 1
