| Axle-Mounted Wheel Dia., Front Caster Dia. | 3 in |
| Axle-Mounted Wheel Type | Tread on Core |
| Axle-Mounted Wheel/Tread Material, Caster Wheel/Tread Material | Polyurethane |
| Base Inside Width, Base Legs Inside Dim. | 14 3/8 in |
| Base Legs Outside Dim. | 24-39/64 in |
| Base Material, Frame Material | Steel |
| Base Outside Width | 24 5/8 in |
| Base Style, Base Type | Fixed Forkover |
| Caster Brake Type | No Caster Brake |
| Caster Wheel Dia., Rear Caster Dia., Rear Wheel Dia. | 7 in |
| Caster Wheel Type | Swivel |
| Caster/Wheel Configuration | (2) Swivel, (2) Axle-Mounted |
| Color | Red |
| Country of Origin (subject to change) | China |
| For Pallet Type | Open |
| Fork Length | 43 in |
| Fork Thickness | 2 3/8 in |
| Fork Type | Fixed |
| Fork Width | 6 1/4 in |
| Frame Finish | Powder Coated |
| Frame Type | Flat Back |
| Front Wheel Dia. | 2 29/32 in |
| Invertible Forks, Non-Marking Axle-Mounted Wheels, Non-Marking Casters/Wheels | No |

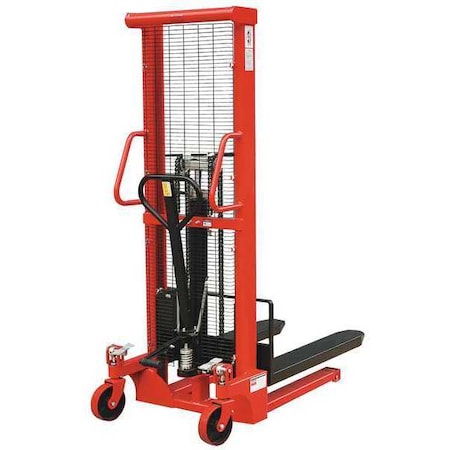

| Item | Manual Fork-Over Stacker |
| Lift Base Style | Fixed Straddle |
| Lift Control | Foot Pump |
| Lift Mechanism | Hydraulic |
| Lift Mobility | Manual Lift, Manual Push |
| Lifting Height Max., Overall Height with Forks Raised | 98 in |
| Lifting Height Min. | 3 5/16 in |
| Lifting Height Range | 3 1/4 in to 8 ft 2 in |
| Load Capacity | 2,000 lb |
| Load Center | 24 in |
| Maximum Lifting Height | 8 ft 2 in |
| Minimum Lifting Height | 3 1/4 in |
| Number of Batteries | 0 |
| Operation | Manual |
| Overall Height, Overall Height with Forks Lowered | 72 in |
| Overall Length | 63 in |
| Overall LxWxH | 63 in x 28 1/2 in x 72 in |
| Overall Width | 28 1/2 in |
| Powered By | Manual Foot Pump |
| Promotion Restriction | Not eligible for promotion |
| Width Across Forks | 27 in |
| Width Between Forks | 14 1/4 in |
