| Application | For Low Volume, High Pressure Cleaning and Spraying Applications Which Include; Farms, Home, Industrial and Commercial Spraying and Pressure Washing and Other Nonflammable Liquids Compatible with Pump Component Materials |
| Bearings | Double Precision, Heavy Duty Main, Supports Shaft Against Side Loads |
| Bolt Hole Dia. (In.) | 0.395 |
| Check Valve | Spring Loaded, are of Unitized Construction with Stainless Steel Spring, Seal and Poppets |
| Country of Origin (subject to change) | China |
| Cylinder Sleeves | Replaceable Ni-Resist |
| Depth (In.) | 5-1/4 |
| GPM @ 100 PSI, GPM @ 200 PSI, GPM @ 300 PSI, GPM @ 400 PSI, GPM @ 50 PSI, Max. Flow GPM | 1.5 |
| GPM @ 500 PSI | 1.4 |
| Height (In.) | 5-3/4 |
| HP @ 100 PSI, HP @ 50 PSI | 1/4 |
| HP @ 200 PSI, HP @ 300 PSI | 1/3 |
| HP @ 400 PSI, Inlet/Outlet (In.) | 1/2 |
| HP @ 500 PSI | 3/4 |
| Includes | Torque Arm |
| Injector Body | Cast Iron |

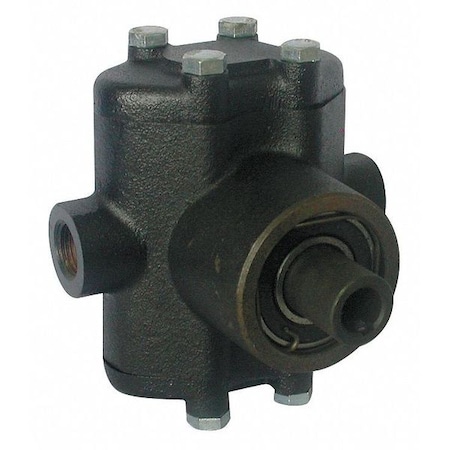

| Item | Pump |
| Max. Pressure (PSI) | 500 |
| Max. RPM | 1800 |
| Max. Temp. (F) | 140 |
| Needle | Adjustable, Calibrated |
| Piston Assembly | Has Buna Impregnated Fabric Piston Cups and PTFE Seal Rings |
| Shaft Dia. | 5/8" |
| Shaft Key (In.) | 3/16 x 1/32 |
| Shaft Length (In.) | 7/8 |
| Shaft Type | Hollow |
| Torque Arm | Makes Shimming Unnecessary and Alignment Automatic |
| Type | Twin-Piston |
| Width (In.) | 5-1/8 |
