mpn:
brand:
manufacturer:
MPN:
Description:

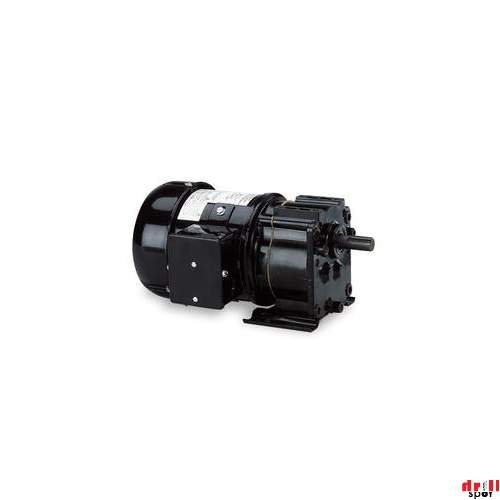

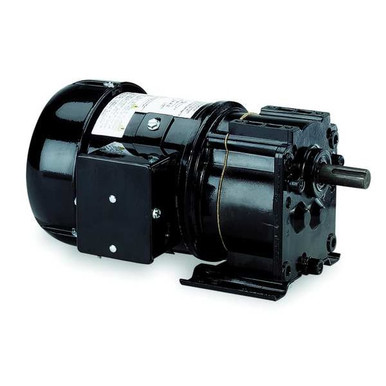

AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 60 RPM, Maximum Torque 150 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated Yes, Gear Ratio 28:1, Brake Type None, Shaft Orientation Parallel, AGMA Gear Class Class 9
Weight:
1.0625
Weight:
1.0625 LB
Preferred Price:
720.76
Price:
720.76
Min Simple Price:
407.44
Absolute Min Price:
578.15
Min Price:
578.15
Dimensions:
[15.0, 9.0, 7.0]
qty:
21
simpleSku:
Dk0NzU:::6K331
sku:
Dk0NzU::NS:6K331@y0
condition:
11
seller:
AmazonTP
amzMan:
dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Ambient (C) | 40 |
| Application | Conveyors, Packaging Equipment |
| Bearings | Heavy Duty Needle Roller and Thrust Balls on Case, Ball on Motor |
| Brake | 5X400 |
| Brand | Dayton |
| Current Stock | 22 |
| Dimension A | 9.03 in |
| Enclosure | TEFC |
| Finish | Powder Coat Black |
| Full Load Amps | 3.80 A, 3.80 |
| Full Load Torque (In.-Lbs.) | 150.0 |
| Gear Case, Gear Case Material, Housing | Die Cast Aluminum |
| Gear Material | Hardened Steel |
| Gear Ratio | 28:1 |
| Gear Type | Helical First Stage/Subsequent Stages Spur/AGMA Class 9 |
| Gearmotor Brake Type, Thermal Protection | None |
| Gearmotor Enclosure | Totally Enclosed Fan-Cooled |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Phase, Phase | 1 |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Shaft Orientation, Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type, Item | AC Gearmotor |
| Gearmotor Voltage | 115V AC, 115 V AC |
| Gears | Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9, Hardened Steel, 1 St Stage Helical, Subsequent Stages Spur, AGMA Class 9 |
| Hz, Nameplate RPM | 60 |
| Input HP | 1/6, 1/15 |
| Insulation Class | B |
| International Shipping | No |
| Keyway Depth | 1/16 in |
| Keyway Size Type | 3/16" x 1" |
| Keyway Width | 3/16 mm |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 9-7/8", 9 7/8 in |
| Length Less Shaft (In.) | 9-7/8 |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Torque | 150 in.-lb., 150.0 in-lb |
| Motor Type | Split-phase |
| Mount Hole Center-to-Center Length | 1.5 in |
| Mount Hole Center-to-Center Width | 4 in |
| Mounting | All Position |
| Mpn | 6K331 |
| Nameplate RPM | 60 RPM |
| Number of Brake Discs Required | 2 |
| Output Shaft Diameter, Shaft Dia. (Dimension U) | 5/8 in |
| Output Shaft Height | 3.5 in |
| Output Shaft Length | 1 1/2 in |
| Overall Height | 5.13 in |
| Overall Width | 6 in |
| Overhung Load | 175 lbs. |
| Overhung Load (Lb.) | 175 |
| Rotation | Rev. |
| Seals | Lip Type on Input and Output Shaft |
| Shaft Dia. (Dimension U) | 5/8" |
| Shaft Dimensions (In.) | 5/8 x 1 1/2 |
| Shaft Length (Dimension V) | 1.5", 1.5 in_x000D_ |
| Ship Weight | 17 lbs. |
| SKU | ZO-G0248342 |
| Standards | UL |
| SubCategory | Power Transmission |
| Type | Parallel Shaft |
| UPC | 190735365656 |
| Voltage Rating | 115 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B000TK96M4 | 407.44 | 407.44 | 1 | In Stock | 2 | DAYTON | 407.44 @ Qty: 1+ | ||
| Zoro | G0248342 | 532.99 | 532.99 | 1 | 41 | Dayton | 16.45 | 532.99 @ Qty: 1+ | |
 | sustainablesupply.com | C2675189 | 647.47 | 647.47 | 1 | In Stock | Dayton | 16.45 | 647.47 @ Qty: 1+ | |
 | simsupply.com | ZO-G0248342 | 678.15 | 678.15 | 1 | 22 | Dayton | 678.15 @ Qty: 1+ | ||
| emotorpro.com | 6K331 | 685.0 | 685.0 | 1 | In Stock | Dayton | 17.0 | 685.0 @ Qty: 1+ | ||
| grainger.ca | DTN6K331 | 730.63986796 | 730.63986796 | 1 | In Stock | DAYTON | 16.45 | 730.63986796 @ Qty: 1+ | ||
 | Raptor Supplies | AE9JFX | 875.756583 | 875.756583 | 1 | In Stock | DAYTON | 875.756583 @ Qty: 1+ |
