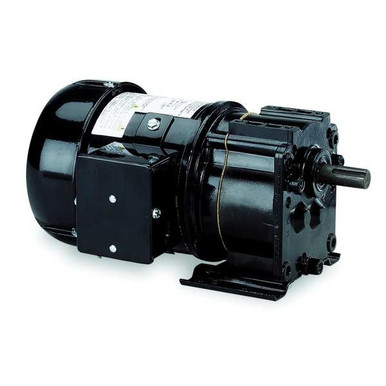

AC Gearmotor, 135 rpm, TEFC, 115V
Imagezoom

mpn:
6K334
brand:
Dayton
manufacturer:
Dayton
MPN:
6K334
Description:
AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 135 RPM, Maximum Torque 65 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated Yes, Gear Ratio 13:1, Brake Type None, Shaft Orientation Parallel, AGMA Gear Class Class 9
Weight:
17.0
Weight:
1.0625 LB
Preferred Price:
720.76
Price:
720.76
Min Simple Price:
407.44
Absolute Min Price:
578.15
Min Price:
578.15
Dimensions:
[15.0, 9.0, 7.0]
qty:
21
simpleSku:
Dk0NzU:::6K334
sku:
Dk0NzU::3G:6K334@y0
condition:
11
seller:
AmazonTP
amzMan:
dayton
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Ambient (C)40
ApplicationConveyors, Packaging Equipment
ASINB000TKHK0E
Batteries Required?, International ShippingNo
BearingsHeavy Duty Needle Roller and Thrust Balls on Case, Ball on Motor
Brake5X400
Brand, ManufacturerDayton
Current Stock47
Dimension A9.03 in
EnclosureTEFC
FinishPowder Coat Black
Full Load Amps3.80 A, 3.80
Full Load Torque (In.-Lbs.)65.0
Gear Case, Gear Case Material, HousingDie Cast Aluminum
Gear MaterialHardened Steel
Gear Ratio13:1
Gear TypeHelical First Stage/Subsequent Stages Spur/AGMA Class 9
Gearmotor Brake Type, Thermal ProtectionNone
Gearmotor EnclosureTotally Enclosed Fan-Cooled
Gearmotor Mounting PositionAll Angle
Gearmotor Phase, Item Package Quantity, Phase1
Gearmotor RotationCW/CCW
Gearmotor Shaft Orientation, Shaft OrientationParallel
Gearmotor Shaft TypeSingle
Gearmotor Type, ItemAC Gearmotor
Gearmotor Voltage115V AC, 115 V AC
GearsHardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9, Hardened Steel, 1 St Stage Helical, Subsequent Stages Spur, AGMA Class 9
Hz60
Input HP1/6
Insulation ClassB
Keyway Depth1/16 in
Keyway Size Type3/16" x 1"
Keyway Width3/16 mm
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft9-7/8", 9 7/8 in
Length Less Shaft (In.)9-7/8
LubricationPermanent Heavy Duty Gear Oil
Max. Ambient Temp.40 Degrees C
Max. Torque65.0 in-lb, 65 in.-lb.
Motor TypeSplit-phase
Mount Hole Center-to-Center Length1.5 in
Mount Hole Center-to-Center Width4 in
MountingAll Position
Mpn, Part Number6K334
Nameplate RPM135 RPM, 135
Number of Brake Discs Required2
Output Shaft Diameter5/8 in
Output Shaft Height3.5 in
Output Shaft Length1 1/2 in
Overall Height5.13 in
Overall Width6 in
Overhung Load175 lbs.
Overhung Load (Lb.)175
RotationRev.
SealsLip Type on Input and Output Shaft
Shaft Dia. (Dimension U)5/8"
Shaft Dimensions (In.)5/8 x 1 1/2
Shaft Length (Dimension V)1.5"
Ship Weight17 lbs.
SKUZO-G2941075
StandardsUL
SubCategoryPower Transmission
TypeParallel Shaft
UPC190735365670
Voltage Rating115

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
AmazonTPB000TKHK0E407.44407.441In Stock2Dayton407.44 @ Qty: 1+
thumbzoomZoroG2941075523.99523.99162Dayton16.4523.99 @ Qty: 1+
thumbzoomAmazonB000TKHK0E587.05587.051In StockDayton587.05 @ Qty: 1+
thumbzoomsustainablesupply.comC1698090647.47647.471In StockDayton16.4647.47 @ Qty: 1+
thumbzoomsimsupply.comZO-G2941075656.85656.85147Dayton656.85 @ Qty: 1+
emotorpro.com6K334685.0685.01In StockDayton17.0685.0 @ Qty: 1+
grainger.caDTN6K334804.3019189804.30191891In StockDAYTON16.4804.3019189 @ Qty: 1+
thumbzoomRaptor SuppliesAE9JFZ861.3092475861.30924751In StockDAYTON861.3092475 @ Qty: 1+
