Description:

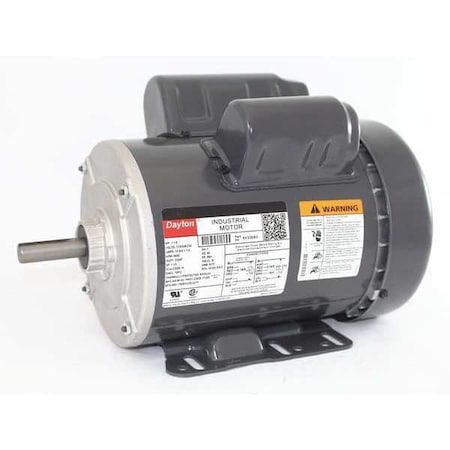

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4, 56H Frame, Hz 60, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Attributes
| Key ^ | Value |
|---|---|
| Frame | 56H |
| HP | 1 1/2 |
| Item | General Purpose Motor |
| Length Less Shaft | 11 1/16 in |
| Manufacturers Warranty Length | 1 yr |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor, No. of Speeds | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Nameplate RPM | 3,450 |
| Overall Length | 12 7/8 in |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Standards | CSA (225293), UL (E47479) |
| Voltage | 115/208-230V AC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
