| Country of Origin (subject to change) | Mexico |
| Duty | Continuous |
| Frame | 56 |
| Frame Material, Motor Frame Material | Rolled Steel |
| Full Load Amps | 7.7/3.9 |
| HP | 3/4 |
| Hz | 60 |
| Ins. Class | B |

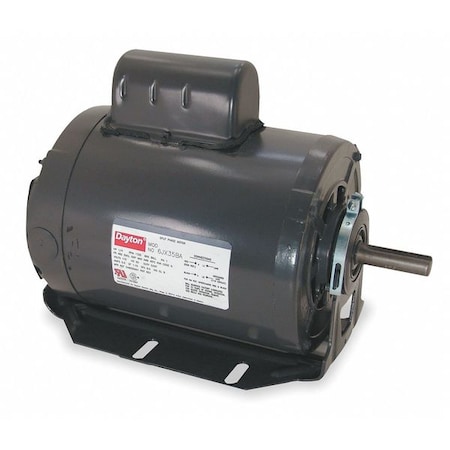

| Item | General Purpose Motor |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 3450 |
| No. of Speeds, Phase | 1 |
| Nominal Efficiency | 76.8% |
| RPM Group, RPM Range | 3001-3600 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-7/8" |
| Standards | UL (E47479), CSA (225293) |
| Voltage | 115/230 |
| Voltage Compatibility | 115, 120, 230, 240, 115/230, 120/240 |
