mpn:
brand:
name: Dayton
manufacturer:
MPN:
Weight:
4.75
Weight:
4.75 LB
Preferred Price:
1348.07
Price:
1348.07
Min Simple Price:
761.6245261
Absolute Min Price:
1081.5
Min Price:
1081.5
Dimensions:
[19.0, 14.0, 14.0]
qty:
21
simpleSku:
MTI3MQ:::6K632
sku:
MTI3MQ::V4:6K632@y0
condition:
11
seller:
grainger.ca
amzMan:
dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps, Full Load Amps | 32.0/16.0 |
| Bearings, Motor Bearings | Ball |
| Brand | Dayton |
| Capacitor | Start Capacitor Included |
| Country of Origin (subject to change) | Multiple |
| Cross Reference | 4K814, 6K145 |
| Current Stock | 2 |
| Duty, Duty Cycle | Continuous |
| Efficiency | 84.9% |
| Enclosure Material, Frame Material, Motor Frame Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Footnotes | 52,55 |
| Frame | 182T |
| HP | 3 |
| Hz | 60 |
| Includes | Shaft Key |
| Ins. Class, Insulation Class | F |
| International Shipping | No |

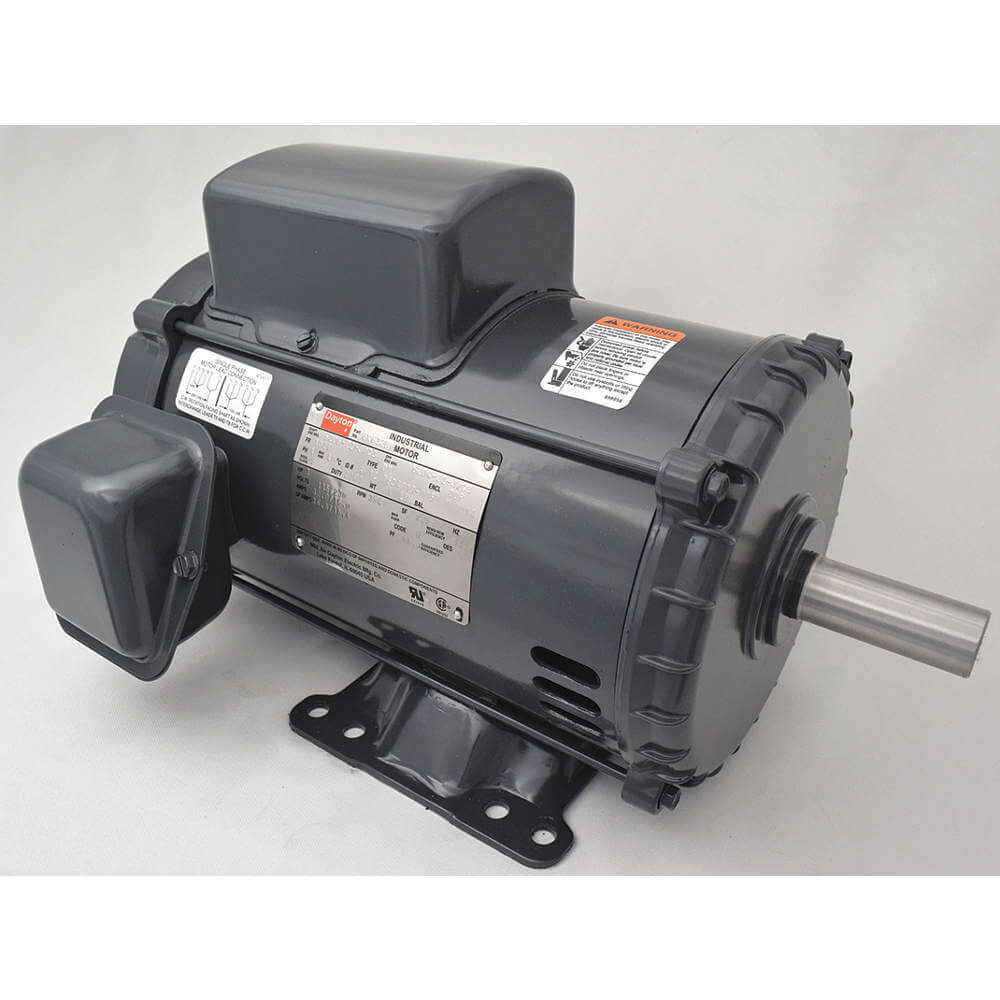

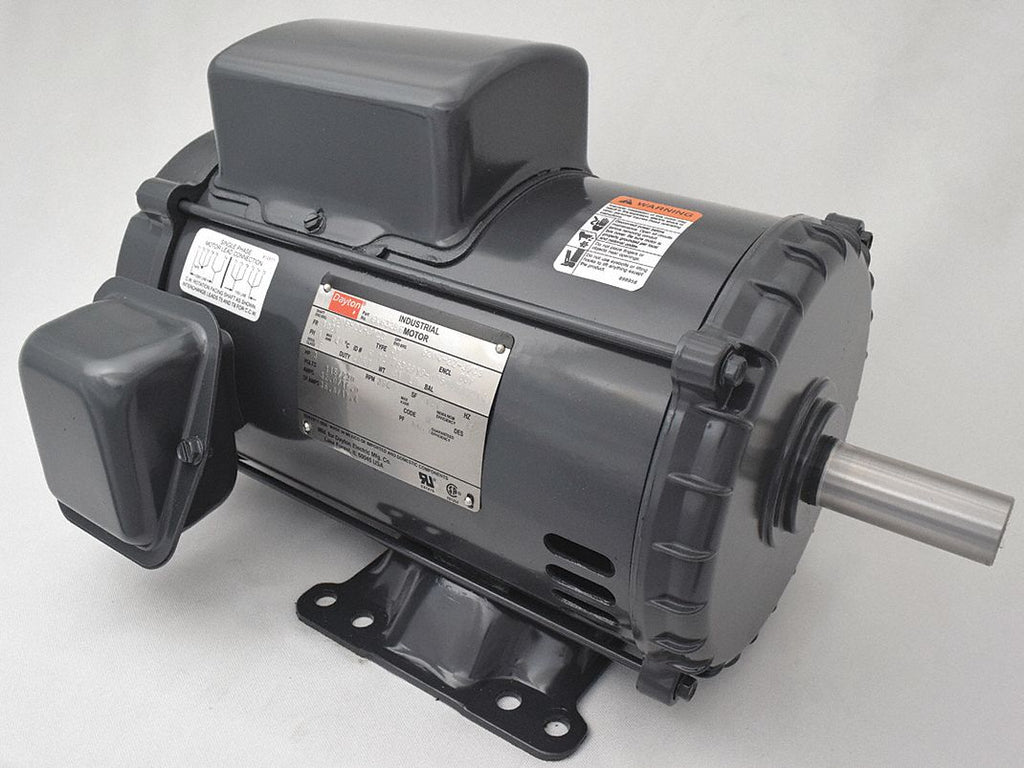

| Item | General Purpose Motor |
| Length Less Shaft | 14 1/2 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor, Service Factor (SF) | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 14-1/2" |
| Motor Thermal Protection, Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 6K632 |
| Nameplate RPM | 3,540 |
| No. of Speeds, Number of Speeds, Phase | 1 |
| Nominal Efficiency | 84.9 % |
| Overall Length | 17 1/4 in, 17-1/4" |
| Phase | Single |
| Product Type | Capacitor Start |
| Rotation | Reversible |
| RPM | 3540 |
| RPM Group | 3001-3600 |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 1 1/8 in |
| Shaft Diameter | 1-1/8" Keyed |
| Shaft Length | 2-3/4", 2 3/4 in |
| Ship Weight | 76 lbs. |
| SKU | ZO-G2827851 |
| Standards | CSA Certified (258525), UL Recognized (E47479), UL Recognized (E47479), CSA Certified (258525) |
| SubCategory | Motors/Ac Motors |
| UPC | 190735366257 |
| Voltage | 115/230V AC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC |
| Volts | 115/230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| grainger.ca | GGE6K632 | 761.6245261 | 761.6245261 | 1 | In Stock | DAYTON | 76.0 | 761.6245261 @ Qty: 1+ | ||
 | Zoro | G2827851 | 884.88 | 884.88 | 1 | In Stock | Dayton | 76.0 | 884.88 @ Qty: 1+ | |
 | simsupply.com | ZO-G2827851 | 1023.69 | 1023.69 | 1 | 2 | Dayton | 1023.69 @ Qty: 1+ | ||
| emotorpro.com | 6K632 | 1145.4 | 1145.4 | 1 | In Stock | Dayton | 76.0 | 1145.4 @ Qty: 1+ | ||
 | sustainablesupply.com | C1566634 | 1152.08 | 1152.08 | 1 | In Stock | Dayton | 76.0 | 1152.08 @ Qty: 1+ | |
 | Raptor Supplies | AE9JJJ | 1311.6683385 | 1311.6683385 | 1 | In Stock | DAYTON | 1311.6683385 @ Qty: 1+ |
