| Country of Origin (subject to change) | Multiple |
| Duty, Duty Cycle | Continuous |
| Footnotes | 24,51 |
| Frame | 56C |
| Frame Material, Motor Frame Material | Steel |
| Full Load Amps | 14.4/8.0-7.2 |
| HP | 1 1/2 |
| Hz | 60 |
| Ins. Class | B |

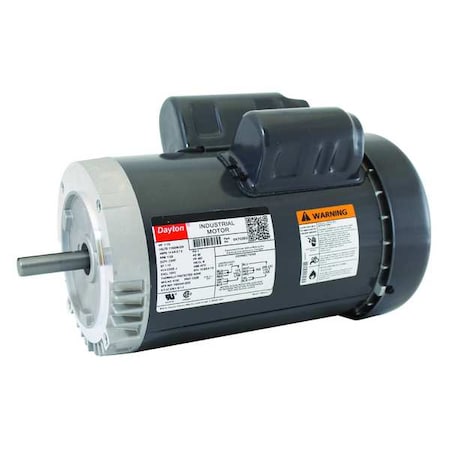

| Item | General Purpose Motor |
| Length Less Shaft | 12 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start/Run |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1,725 |
| No. of Speeds | 1 |
| Nominal Efficiency | 80 % |
| Overall Length | 13 7/8 in |
| Phase | Single |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Standards | CSA Certified 156060, UL Component Recognition E47479 |
| Voltage | 115/208-230V AC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
