mpn:
brand:
manufacturer:
MPN:
Description:

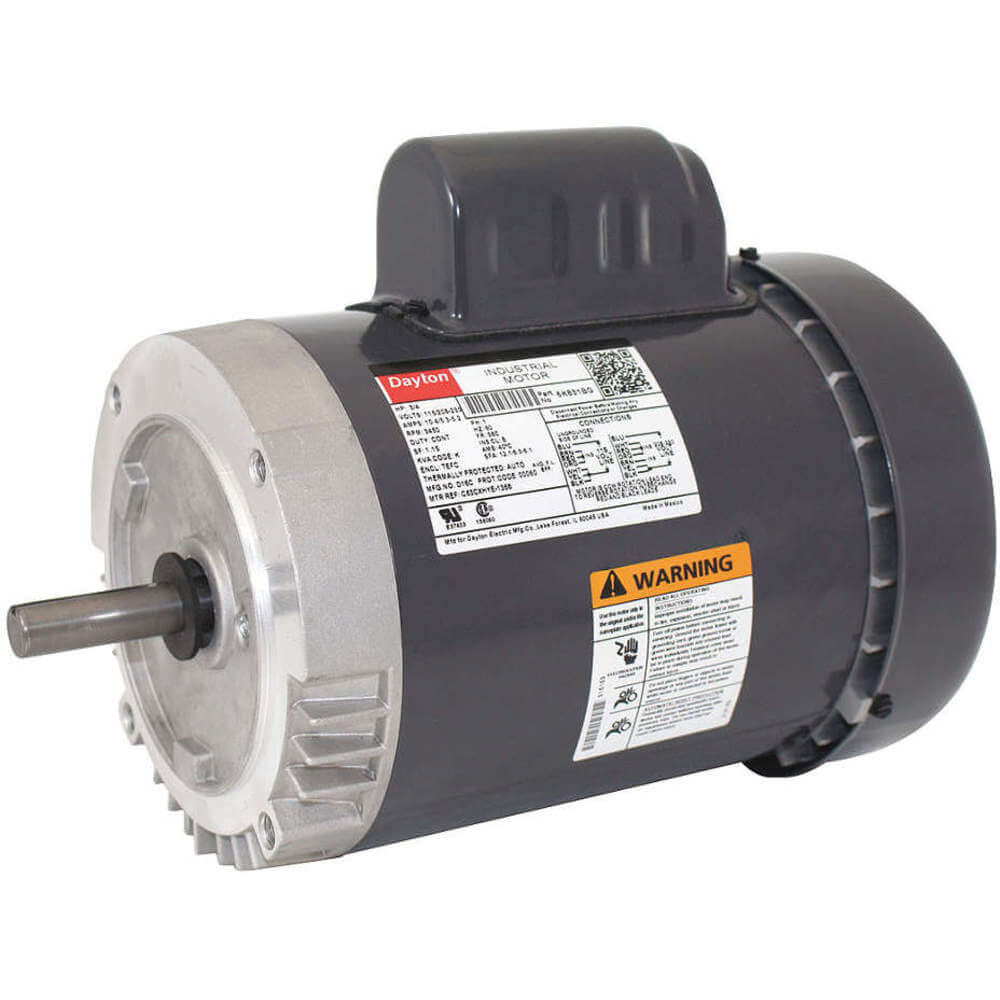

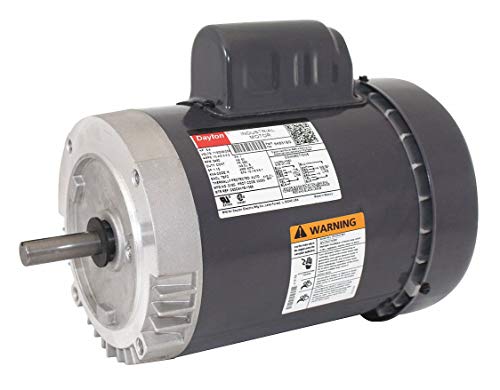

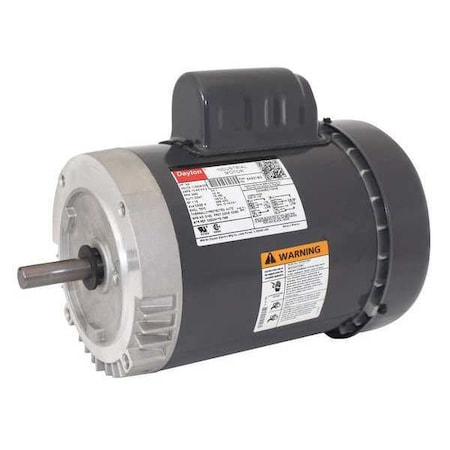

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2, 56C Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Weight:
32.0
Weight:
2.0 LB
Preferred Price:
414.99
Min Offer Price:
249.85
Price:
414.99
Min Simple Price:
234.46
Absolute Min Price:
332.93
Min Price:
332.93
Dimensions:
[19.0, 12.0, 12.0]
qty:
21
simpleSku:
ODEwOA:::6K831
sku:
ODEwOA::BX:6K831@y0
condition:
11
seller:
AmazonTP
amzMan:
cai - dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps, Full Load Amps | 10.4/5.3-5.2 |
| Bearings, Motor Bearings | Ball |
| Brand | Dayton |
| Capacitor | Start Capacitor Included |
| Cross Reference | 1K080 |
| Current Stock | 22 |
| Duty Cycle | Continuous |
| Efficiency | 65.3% |
| Enclosure Material, Motor Frame Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 56C |
| HP | 3/4 |
| Hz | 60 |
| Includes | Shaft Key |
| Ins. Class, Insulation Class | B |
| International Shipping | No |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 10 1/16 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Diameter | 6-1/2" |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-1/16" |
| Motor Thermal Protection | Auto |
| Mounting | C-Face |
| Mpn | 6K831 |
| Nameplate RPM | 3,450 |
| No. of Speeds, Number of Speeds, Phase | 1 |
| Nominal Efficiency | 67.8 % |
| Overall Length | 11 15/16 in, 11-15/16" |
| Phase | Single |
| Product Type | Capacitor Start |
| Rotation | Reversible |
| RPM | 3450 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 32 lbs. |
| SKU | ZO-G2522317 |
| Standards | CSA Certified (258501), UL Recognized (E37403), UL Recognized, CSA Certified, CE |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735366530 |
| Voltage | 115/208-230V AC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Volts | 115/208-230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B07BLQCB1W | 234.46 | 234.46 | 1 | In Stock | 3 | DAYTON | 234.46 @ Qty: 1+ | ||
 | Zoro | G2522317 | 243.99 | 243.99 | 1 | 76 | Dayton | 32.0 | 243.99 @ Qty: 1+ | |
 | simsupply.com | ZO-G2522317 | 288.84 | 288.84 | 1 | 22 | Dayton | 288.84 @ Qty: 1+ | ||
 | sustainablesupply.com | C1566653 | 314.27 | 314.27 | 1 | In Stock | Dayton | 32.0 | 314.27 @ Qty: 1+ | |
| emotorpro.com | 6K831 | 356.04 | 356.04 | 1 | In Stock | Dayton | 32.0 | 356.04 @ Qty: 1+ | ||
| grainger.ca | GGE6K831 | 363.34574166 | 363.34574166 | 1 | In Stock | DAYTON | 27.2 | 363.34574166 @ Qty: 1+ | ||
 | Raptor Supplies | AE9JKH | 387.5528475 | 387.5528475 | 1 | In Stock | DAYTON | 387.5528475 @ Qty: 1+ |
