Dayton 6K882
Daytonzoom
mpn:
brand:
manufacturer:
MPN:
Description:

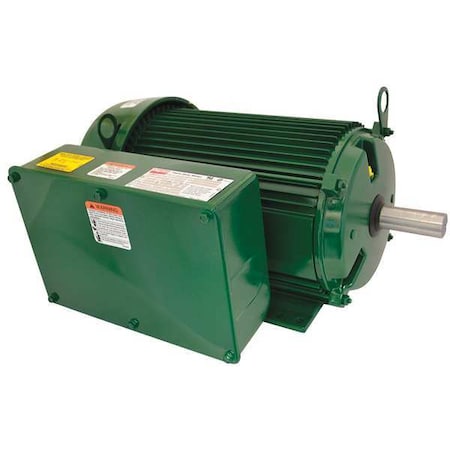

Extra High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 24.0, 184T Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel

Attributes

Key ^Value
Frame184T
HP5
Ins. ClassF
ItemExtra High Torque Farm Duty Motor
Length Less Shaft16 1/16 in
Motor ApplicationFarm Duty
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Sub ApplicationExtra High Torque
Motor Thermal ProtectionManual
Nameplate RPM1,740
Overall Length18 13/16 in
PhaseSingle
RPM Range1,701-1,800
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
StandardsCSA Certified (258525), UL Recognized (E47479)
Voltage230V AC
