Description:

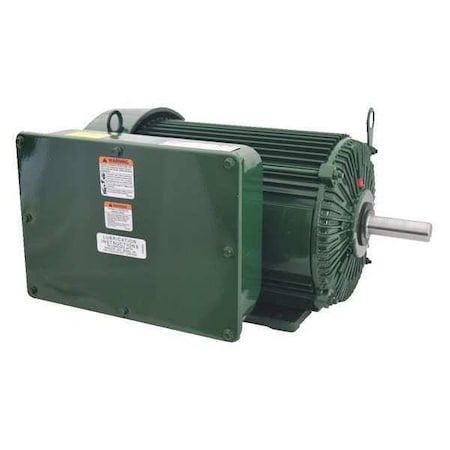

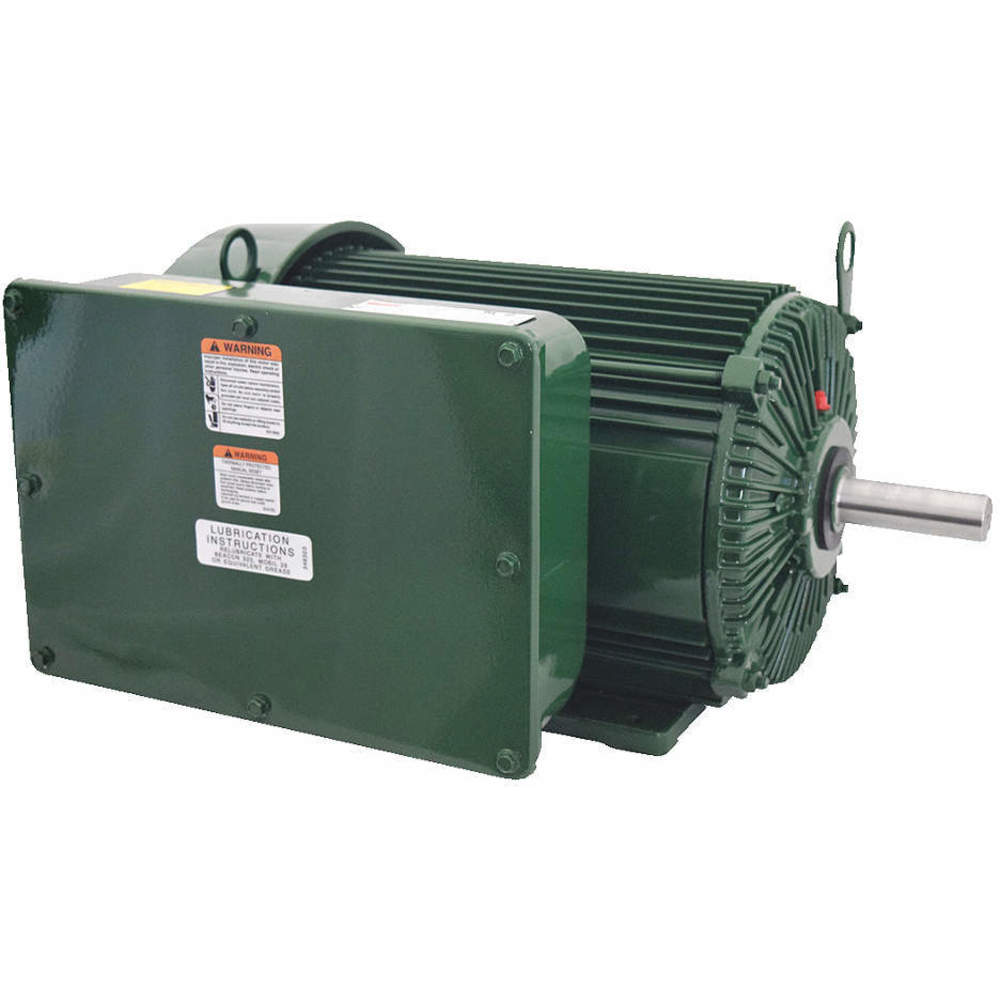

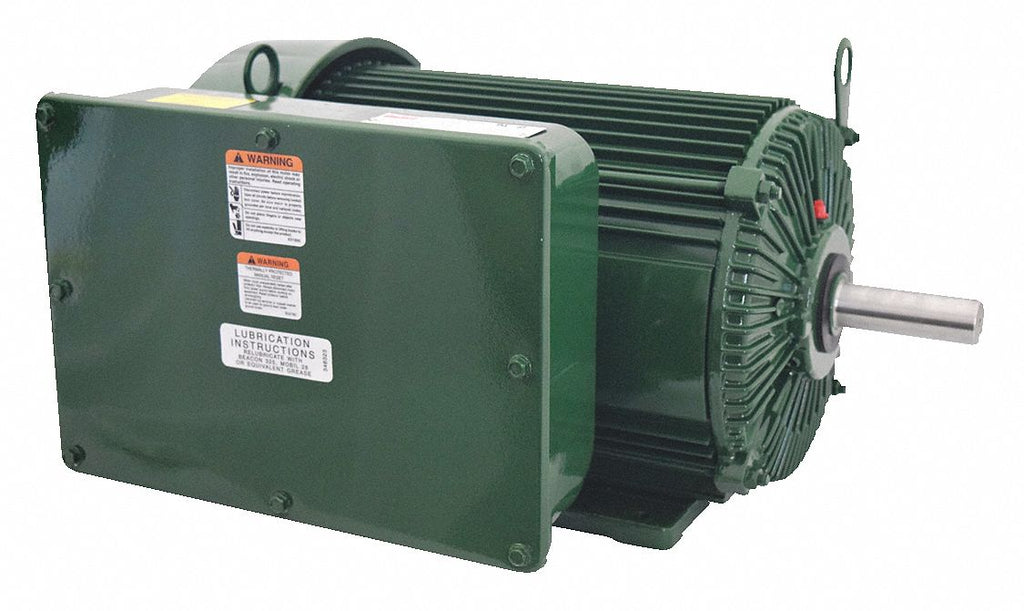

Extra High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 HP, Nameplate RPM 1,715, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.8, 215TZ Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Weight:
9.25
Weight:
9.25 LB
Preferred Price:
2734.63
Price:
2734.63
Min Simple Price:
1544.99
Absolute Min Price:
2193.88
Min Price:
2193.88
Dimensions:
[25.0, 18.0, 16.0]
qty:
21
simpleSku:
MTI3MQ:::6K884
sku:
MTI3MQ::CC:6K884@y0
condition:
11
seller:
AmazonTP
amzMan:
dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps, Full Load Amps | 30.8 |
| Bearings, Motor Bearings | Ball |
| Brand | Dayton |
| Capacitor | Start and Run Capacitors Included |
| Color, Finish | Green |
| Cross Reference | 6K969 |
| Current Stock | 9 |
| Duty Cycle | Continuous |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 215TZ |
| HP | 7 1/2, 7-1/2 |
| Hz | 60 |
| Includes | Shaft Key, Gasketed Conduit Box and Shaft Slinger |
| Ins. Class, Insulation Class | F |
| International Shipping | No |
| Item | Extra High Torque Farm Duty Motor |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 18 in |
| Max. Ambient Temp., Max. Ambient Temperature | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | Farm Duty |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor, Service Factor (SF) | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Extra High Torque |
| Motor Thermal Protection, Thermal Protection | Manual |
| Mounting | Rigid |
| Mpn | 6K884 |
| Nameplate RPM | 1,715 |
| No. of Speeds, Phase | 1 |
| Nominal Efficiency | 83 % |
| Overall Length | 21 3/8 in |
| Phase | Single |
| Product Type | Capacitor Start, Capacitor Run |
| Rotation | Reversible |
| RPM | 1720 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 1/8 in |
| Shaft Diameter | 1-1/8" Keyed |
| Shaft Length | 3 3/8 in, 3-3/8" |
| Ship Weight | 148 lbs. |
| SKU | ZO-G1854469 |
| Standards | CSA Certified (258525), UL Recognized (E47479), UL Recognized (E47479), CSA Certified (258525) |
| SubCategory | Motors/Ac Motors |
| UPC | 190735366660 |
| Voltage | 230V AC |
| Volts | 230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B000LE9CCC | 1544.99 | 1544.99 | 1 | In Stock | 2 | DAYTON | 1544.99 @ Qty: 1+ | ||
| Grainger | 6K884 | 1589.0 | 1589.0 | 1 | 13 | 0 | DAYTON | 1589.0 @ Qty: 1+ | ||
 | Zoro | G1854469 | 1843.99 | 1843.99 | 1 | 18 | Dayton | 148.0 | 1843.99 @ Qty: 1+ | |
| emotorpro.com | 6K884 | 2228.7 | 2228.7 | 1 | In Stock | Dayton | 148.0 | 2228.7 @ Qty: 1+ | ||
 | sustainablesupply.com | C2776167 | 2231.99 | 2231.99 | 1 | In Stock | Dayton | 148.0 | 2231.99 @ Qty: 1+ | |
 | simsupply.com | ZO-G1854469 | 2249.62 | 2249.62 | 1 | 9 | Dayton | 2249.62 @ Qty: 1+ | ||
| grainger.ca | EBP6K884 | 2352.41708466 | 2352.41708466 | 1 | In Stock | DAYTON | 148.0 | 2352.41708466 @ Qty: 1+ | ||
 | Raptor Supplies | AJ2JKH | 2752.47999 | 2752.47999 | 1 | In Stock | DAYTON | 2752.47999 @ Qty: 1+ |
