Description:

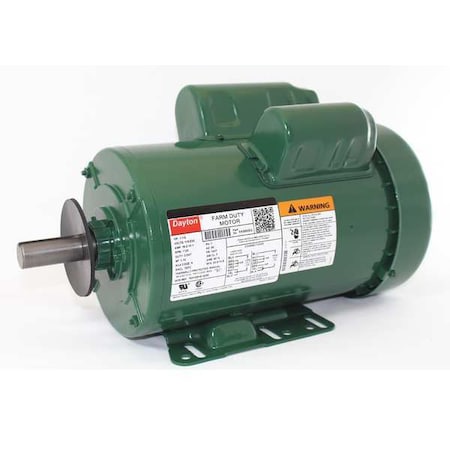

Extra High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 19.2/10.1, 143/5T Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Attributes
| Key ^ | Value |
|---|---|
| Frame | 143/5T |
| HP | 1 1/2 |
| Item | Extra High Torque Farm Duty Motor |
| Length Less Shaft | 12 1/2 in |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Extra High Torque |
| Motor Thermal Protection | Manual |
| Nameplate RPM | 1,725 |
| Overall Length | 14 3/4 in |
| Phase | Single |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Standards | CSA Certified (258501), UL Recognized (E47479) |
| Voltage | 115/230V AC |
