name: Dayton
manufacturer:
MPN:
Description:

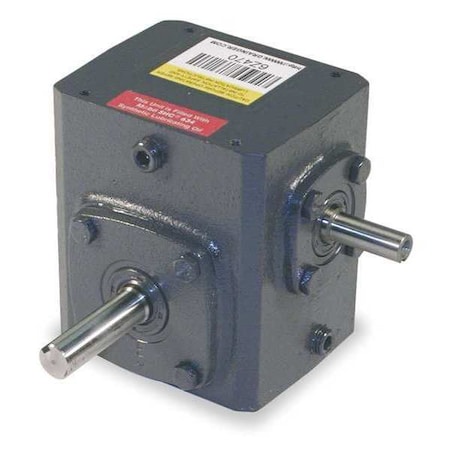

Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 29 RPM, Worm Center Distance 1.33 in, Gear Ratio 60:1, Rotation CW/CCW, Maximum Input Horsepower 0.25 hp, Maximum Output Torque 209 in-lb, Overhung Load Capacity 275 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller, Gear Material Hardened Steel, Manganese Bronze
Attributes
| Key ^ | Value |
|---|---|
| Bearings | Ball |
| Dimension U, Output Shaft Dia. | 5/8 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Gear Material | Hardened and Ground Steel |
| Gear Type | Worm |
| Input RPM | 1750 rpm |
| Item | Speed Reducer |
| Lubrication | Klubersynth UH1 6-460 |
| Max. Output Torque | 209 in-lb |
| Nominal Output RPM | 29 RPM |
| Nominal Ratio | 60:1 |
| Number of Stages | 1 |
| Output Torque @ 1/3 HP | 209 in.-lb. |
| Output Torque @ 1/40 HP | 3600 |
| Overhung Load | 275 lb |
| Rotation | Forward/Reversible |
| Single/Double Output/Universal | Single Output |
| Solid/Hollow Output Shaft | Solid |
| Speed Reducer Type | Indirect Drive |
| Standards | AGMA |
| Worm Center Distance | 1.33 in |
| Worm Gear Material | Bronze |
