Destaco 030-1-D-1100

B09KS8NYV2

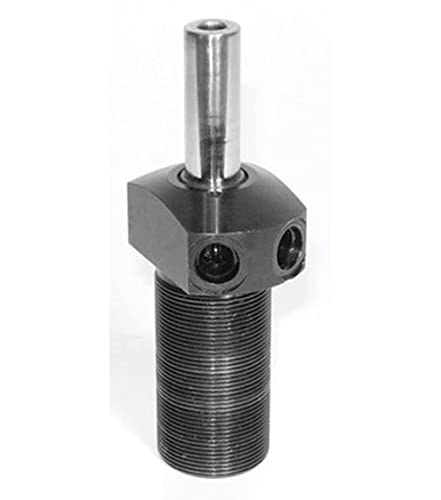

DESTACO 030-1-D-1100 Series 030 Hydraulic Double-Acting Swing/Pull Clamp, Left Hand Swing Direction, 1100lb Force, 4 SAE Port, 0.89" Stoke, 5.965" Height

DESTACO 030-1-D-1100 Series 030 Hydraulic Double-Acting Swing/Pull Clamp, Left Hand Swing Direction, 1100lb Force, 4 SAE Port, 0.89" Stoke, 5.965" Heightzoom

Attributes

Key Value
Body StyleThreaded Body;Upper Fla.
Body Thread Length61, 2.400
Body Thread Size1-3/8-18
BrandDestaco
Collapsed Height134.9, 5.31
Country of Origin (subj.Taiwan, Province of Chi.
Force (lb)1,100
Holding Capacity4893, 1100
ItemHyd. Swing Clamp, Dbl.A.
Maximum Operating Press.5000, 344.7
MountingThreaded Body
Operating MethodDouble-Acting
Operating Pressure (PSI)5000
Outside Diameter1.375, 34.9
Port SizeSAE #4
Port Thread Size#4
Product FamilyHydraulic Clamping
Product FunctionClamping
Product Grouphydraulic work holding
Product Series Descript.Manual Power Source
Product TypeSwing/Pull Clamps
Stroke (in)0.890
Stroke Length0.89, 22.6
Swing DirectionLH (Standard)
Vertical clamp stroke (.0.39
Vertical clamp stroke (.9.9

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
reidsupply.comTBSC-DA-1100675.851In StockDestaco675.85 @ 1
thumbzoomGuardian81136962710.131In StockDe-Sta-Co710.13 @ 1
thumbzoomZoroG3127251726.491In Stock30De-Sta-Co1.7726.49 @ 1
thumbzoomfreertool.comDE-STA-CO-030-1-D-1100785.071In StockDESTACO785.07 @ 1
