- mpn601
- brandname: De-Sta-Co
- manufacturername: De-Sta-Co

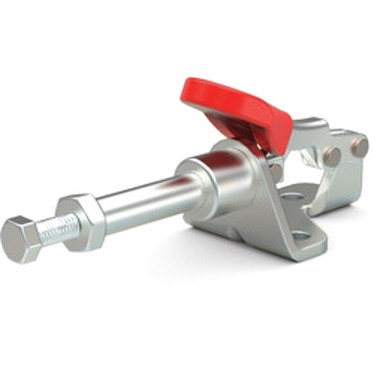

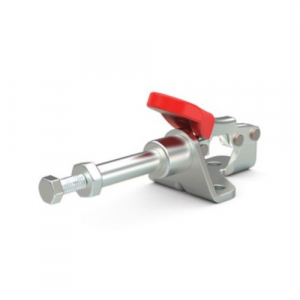

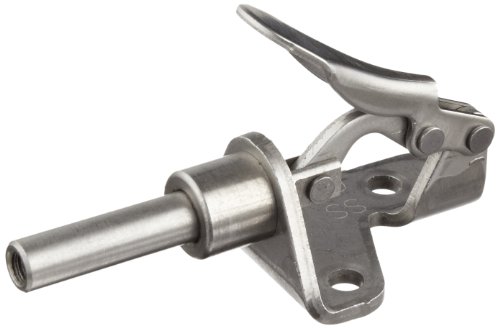

DE-STA-CO 601 Straight Line Action Clamp
- Brand: De-Sta-Co
- PartNumber: 601
- Model: 601
- PackageQuantity: 1
- Binding: Unknown Binding
- Manufacturer: DE-STA-CO
- Label: DE-STA-CO
Attributes
| Key | Value |
|---|
| Accommodates Workpiece . | No |
| Application | Assembly, Gluing, Solde. |
| Arm Length | 1.28 in |
| Available | Yes |
| Base Length | 1.330, 33.8 |
| Base Mounting Style | Flange |
| Base Width | 26.7, 1.050 |
| Body Material | Steel |
| Brand | Destaco, De-Sta-Co |
| Current Stock | 797 |
| Ef:Af Exerting Force: A. | 14:1/25:1 |
| Exerted Force : Applied. | 1.0423611111111111 |
| Exerted Force : Applied. | 0.58402777777777781 |
| Fastener Thread Size | #8-32 |
| Handle Movement Action | Forward Action |
| Handle Orientation | Horizontal |
| Height to Plunger Center | 12.7 |
| Height Under Arm | 0.5 in |
| Holding Capacity | 100, 444.8, 100 lbs. |
| Holding Capacity - Maxi. | 100 lbf |
| Imperial or Metric Prod. | Imperial |
| Includes | Spindle |
| Includes Locking Handle | No |
| Includes Spindle | Yes |
| International Shipping | No |
| Item | Straight Line Clamp |
| Item Weight | 0.10 lbs per EA |
| Lead Time | Expected to ship in 1-2. |
| Maximum Holding Capacit. | 100 |
| Model Number | 601 |
| Mount Type | Flanged Base |
| Mounting Holes Center t. | 0.63 in |
| Mounting Holes Center t. | 0.63 in |
| Mpn | 601 |
| Overall Depth | 1.27 in |
| Overall Height | 30.2, 1.190, 1-1/4" |
| Overall Length | 2-5/8", 2.620, 3.17 in,. |
| Overall Width | 1.05 in |
| Plunger | Round |
| Plunger Diameter | 0.250, 6.4 |
| Plunger Height | 0.5 in |
| Plunger Height (in) | 0.500 |
| Plunger Shape | Round |
| Plunger Thread | #8-32 |
| Plunger Thread Type | Internal Thread |
| Plunger Travel | 5/8", 16 |
| Plunger Travel (in) | 0.63 |
| Plunger Travel1 | 0.63 in |
| Preferred Market | NA/SA |
| Product Family | Manual Clamping |
| Product Function | Clamping |
| Product Group | Straight-line Action Cl. |
| Product Series Descript. | Straight Line Action Cl. |
| Product Type | Standard |
| Recommended Spindle Man. | 105203 |
| SKU | ZO-G3310081 |
| Spindle (Recommended) | 105203 |
| Spindle Assembly | Yes |
| Spindle Included? | Yes |
| Standard Material | Steel |
| SubCategory | Machining |
| Tip Diameter | 1/4 in |
| Toggle Lock Plus | No |
| UPC | 697437560100 |
| Weight (lb) | 0.09 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | kinequip.com | 601 | 13.04 | 1 | 1 | | Destaco | | 13.04 @ 1 |
 | freertool.com | DE-STA-CO-601 | 14.12 | 1 | In Stock | | DESTACO | 0.09 | 14.12 @ 1 |
| reidsupply.com | TC-601 | 15.04 | 1 | 124 | | Destaco | | 15.04 @ 1 |
 | bscsource.com | 06966105 | 16.09 | 1 | In Stock | | De-Sta-Co | | 16.09 @ 1 |
| Grainger | 3CXR8 | 16.48 | 1 | In Stock | | DE-STA-CO | | 16.48 @ 1 |
 | KBC Tools | 1-910-56010 | 17.03 | 1 | 38 | | DESTACO | 0.1 | 17.03 @ 1 |
 | primebuy.com | 601 | 18.4 | 1 | In Stock | | Destaco | | 18.4 @ 1 |
| grainger.ca | DSC601 | 18.40644016 | 1 | In Stock | | DE-STA-CO | 0.09 | 18.40644016 @ 1 |
 | simsupply.com | ZO-G3310081 | 21.42 | 1 | 797 | | De-Sta-Co | | 21.42 @ 1 |
 | National Supply Network | 6966105 | 26.36 | 1 | In Stock | | De-Sta-Co | | 26.36 @ 1 |
 | Raptor Supplies | AC8PLB | 29.2633965 | 1 | In Stock | | DESTACO | | 29.2633965 @ 1 |
