De-Sta-Co 9540-2L

B01LXFBLOL

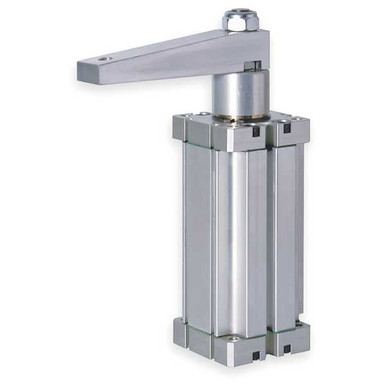

DE-STA-CO Pneumatic Swing Clamp, LH Swing, 105 Lb

DE-STA-CO Pneumatic Swing Clamp, LH Swing, 105 Lbzoom

Attributes

Key Value
Air Consumption (per do.0.016
Air Port size1/8 NPT
Arm Height20.00mm
Arm MaterialAluminum
Arm Swing Angle90 Degrees
Base Length Center to C.39.9
Base Mounting Centers (.40 x 40mm
Body MaterialAluminum
BrandDestaco, De-Sta-Co
Clamping Force @ 5Bar[7.123
Current Stock3
Cylinder Bore (in)1.57
Exerting Force @ 80 psi.55.8
FeaturesShielded Piston Rod for.
Foot Mount Kit954060
For Use WithNos. 3CXN2, 3CXN3 Clamp.
Holding Capacity160 lb
Holding Capacity (Lb.)160
IncludesClamp Only, Arm is Sold.
International ShippingNo
ItemPneumatic Swing Clamp, .
Lead TimeExpected to ship in 1-2.
MaterialAluminum
Max. Input Air Pressure120 psi
Max. Input Air Pressure.120
Max. Operating Temperat.140 Degrees F
Max. Vertical Clamp Str.20.00mm
Min. Operating Temperat.-14 Degrees F
MountBlock: Side flange, tap.
Mounting Hole Pattern2 x 2
Mounting Hole Spacing A.1.570, 39.9
Mounting Hole Thread Si.M6
Mpn9540-2L
Operating Temp.-14 Degrees to +140 De.
Overall Height190.90mm
Port Size1/8 in NPT
Port Thread Size1/8
Port Thread StandardNPT
Product FamilyLight-Duty Pneumatic Cl.
Product FunctionClamping
Product Grouppneumatic swing clamps
Product Series Descript.Swing Clamp
Replacement Seal Kit954092
SKUZO-G2602905
Standard Mount Kit954062
Stroke (in)0.790
Stroke (mm)20
Stroke during rotation .0.00
SubCategoryMachining
Swing DirectionLH, Left
Tapped Hole Mount Kit954061
TypeLH Swing
Vertical clamp stroke (.0.79
Weight (lb)1.98
Width2.05, 52.1

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomfreertool.comDE-STA-CO-9540-2L447.421In StockDESTACO1.98447.42 @ 1
thumbzoomZoroG2602905502.99116De-Sta-Co2.39502.99 @ 1
reidsupply.com1291632539.421In StockDestaco539.42 @ 1
thumbzoomsimsupply.comZO-G2602905595.3213De-Sta-Co595.32 @ 1
Grainger3CXL9617.5150DE-STA-CO617.5 @ 1
thumbzoomsustainablesupply.comC1466849636.381In StockDESTACO2.39636.38 @ 1
grainger.caWWG3CXL9639.014118521In StockDE-STA-CO2.39639.01411852 @ 1
thumbzoomRaptor SuppliesAC8PJY798.06723751In StockDESTACO798.0672375 @ 1
