Description:

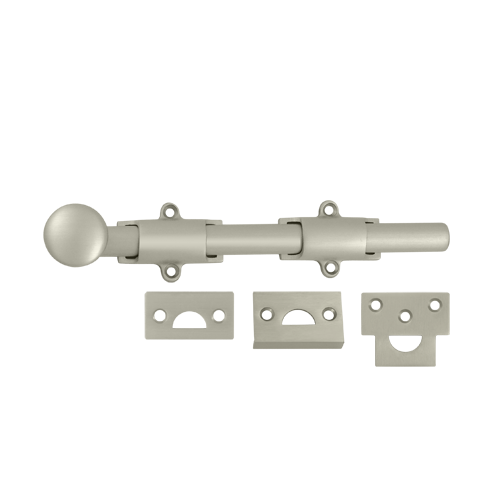

Deltana is a brand famous for providing excellent quality hardware products for decades. The Heavy Duty Extra Security Surface Bolt is ideally used on a pair of double doors where one of the doors is inactive mostly. This efficient surface bolt can be installed on the top and bottom of the door to hold the door closed. Each surface bolt is constructed with machine precision and supplied with three strikes: Universal, Mortise, and Angle Strike. This Surface Bolt finds its use across varied architectural projects.
Attributes
| Key ^ | Value |
|---|---|
| Available Strikes | Universal Mortise & Angle Strike |
| Box Qty | 10 pc |
| CatchType | Barrel Slide Bolt Latch |
| Color, Finish | Satin Nickel |
| Depth | 0.3125 |
| Dimensions | Diameter: 0.625 inches |
| Function, Product Type | Surface Bolt |
| Latch Throw | 8.5 |
| Length | 8 |
| Material | Brass |
| Other Specifications | Rod Dimensions: 8"x 5/8" Knob Diameter: 1-1/4" Guide Width: 1-1/2" Rod Extention:1-1/16" |
| Pack Size | 1 |
| Projection | 1-1/4 |
| Rod Dimensions | 8"x 5/8" |
| Screws Included | Yes, With Matching Phillips Head Screws |
| Size | 8" Length |
| Width | 5/8 |
