mpn:
brand:
manufacturer:
MPN:
Description:

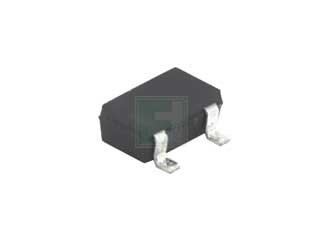

Bipolar (BJT) Transistor PNP 45 V 100 mA 100MHz 150 mW Surface Mount SOT-523
Weight:
0.088
Weight:
0.44 LB
Preferred Price:
26.58
Price:
26.58
Min Simple Price:
0.0048
Absolute Min Price:
20.67
Min Price:
20.67
Dimensions:
[4.0, 4.0, 2.0]
qty:
1
simpleSku:
ODY4NA:::BC857BT-7-F
sku:
ODY4NA::GN:BC857BT-7-F@x3000
condition:
11
seller:
RS Delivers
amzMan:
diodes
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | BC857 |
| Category | Discrete Semiconductor Products |
| Current - Collector (Ic) (Max) | 100 mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 220 @ 2mA, 5V |
| Description | TRANS PNP 45V 0.1A SOT523 |
| Detailed Description | Bipolar (BJT) Transistor PNP 45 V 100 mA 100MHz 150 mW Surface Mount SOT-523 |
| Digi-Key Part Number | BC857BT-FDITR-ND - Tape & Reel (TR) |
| Frequency - Transition | 100MHz |
| Manufacturer Product Number | BC857BT-7-F |
| Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer, Mfr | Diodes Incorporated |
| Mounting Type | Surface Mount |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case, Supplier Device Package | SOT-523 |
| Power - Max | 150 mW |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 650mV @ 5mA, 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| RS Delivers | 146-0563 | 0.0048 | 0.01632 | 1 | 5 | DiodesZetex | 0.0048 @ Qty: 5+ | |||
| Win Source | BC857BT-7-F | 0.022 | 0.0748 | 1 | 1344222 | Diodes Incorporated | 0.022 @ Qty: 5+ | |||
| Hotenda | H2049546 | 0.0368 | 0.12512 | 1 | 6000 | Diodes Incorporated | 0.0368 @ Qty: 5+ | |||
 | TME | BC857BT-7-F | 0.0515 | 0.5665 | 20 | 11756 | DIODES INCORPORATED | 0.0515 @ Qty: 20+ | ||
 | Newark | 51R6404 | 0.211 | 1.055 | 5 | 1720 | DIODES INC. | 0.211 @ Qty: 5+ | ||
| Arrow | BC857BT-7-F | 0.213 | 0.7242 | 1 | 2996 | Diodes Inc. | 0.213 @ Qty: 5+ | |||
| Mouser | 621-BC857BT-7-F | 0.22 | 0.748 | 1 | 3245 | Diodes Inc. | 0.22 @ Qty: 5+ | |||
 | Digi-Key | 814994 | 0.264 | 0.8976 | 1 | 6920 | Diodes Incorporated | 0.264 @ Qty: 5+ | ||
| AmazonSC | B076FCP8GN | 82.23 | 279.582 | 1 | 5 | DIODES | 82.23 @ Qty: 5+ |
