Description:

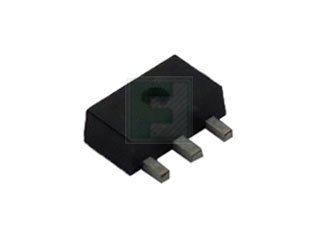

P-Channel 240 V 200mA (Ta) 1.5W (Ta) Surface Mount SOT-89-3
Weight:
0.000661386786
Weight:
0.000661386786 LB
Preferred Price:
690.3
Price:
690.3
Min Simple Price:
0.39
Absolute Min Price:
553.79
Min Price:
553.79
qty:
1
simpleSku:
ODY4NA:::ZVP4424ZTA
sku:
ODY4NA::DC:ZVP4424ZTA@y3
condition:
11
seller:
Hotenda
amzMan:
diodes inc.
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Alternate Part No. | 522-ZVP4424ZTA |
| Base Product Number | ZVP4424 |
| Brand | Diodes Incorporated |
| Case | SOT89 |
| Category | Discrete Semiconductor Products |
| Channel Mode | Enhancement |
| Configuration | Single Dual Drain |
| Current - Continuous Drain (Id) @ 25?C | 200mA (Ta) |
| Drain current | -0.2A |
| Drain to Source Voltage (Vdss) | 240 V |
| Drain-source voltage | -240V |
| Drive Voltage (Max Rds On, Min Rds On) | 3.5V, 10V |
| Fall Time | 20 ns |
| FET Feature | - |
| FET Type | P-Channel |
| Gate-source voltage | ?40V |
| Id - Continuous Drain Current | - 200 mA |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 25 V |
| Kind of channel | enhanced |
| Kind of package | reel, |
| Manufacturer | Diodes Incorporated |
| Manufacturer Part No. | ZVP4424ZTA |
| Maximum Operating Temperature | + 150 C |
| Mfr | Diodes Incorporated |
| Minimum Operating Temperature | - 55 C |
| Mounting | SMD |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| On-state resistance | 8.8? |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Package/Case | SOT-89-3 |
| Packaging | Reel |
| Pd - Power Dissipation | 1 W |
| Polarisation | unipolar |
| Power dissipation | 1.5W |
| Power Dissipation (Max) | 1.5W (Ta) |
| Product Category | MOSFET |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 9Ohm @ 200mA, 10V |
| Rds On - Drain-Source Resistance | 9 Ohms |
| Rise Time | 8 ns |
| Series | - |
| Supplier Device Package | SOT-89-3 |
| Technology | MOSFET (Metal Oxide) |
| Transistor Polarity | P-Channel |
| Type of transistor | P-MOSFET |
| Typical Turn-Off Delay Time | 26 ns |
| Vds - Drain-Source Breakdown Voltage | - 240 V |
| Vgs (Max) | ?40V |
| Vgs - Gate-Source Breakdown Voltage | 40 V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Hotenda | H1812304 | 0.39 | 11.856 | 1 | 4000 | Diodes Incorporated | 0.39 @ Qty: 50+ | |||
 | TME | ZVP4424ZTA | 0.716 | 21.7664 | 1 | 995 | DIODES INCORPORATED | 0.716 @ Qty: 50+ | ||
 | Newark | 29AK9124 | 0.747 | 22.7088 | 1 | 970 | DIODES INC. | 0.747 @ Qty: 50+ | ||
| Digi-Key | 991846 | 1.0189 | 30.97456 | 1 | 50 | Diodes Incorporated | 1.0189 @ Qty: 50+ | |||
 | swatee.com | ZVP4424ZTA | 1.44 | 43.776 | 1 | 674 | Diodes Incorporated | 1.44 @ Qty: 50+ |
