mpn:
brand:
manufacturer:
MPN:
Description:

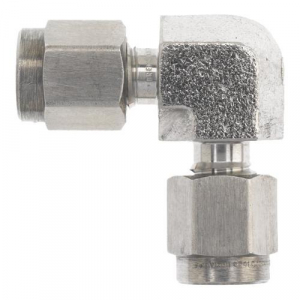

Instrumentation Union Elbow
Weight:
0.031
Weight:
0.031 LB
Preferred Price:
128.75
Price:
128.75
Min Simple Price:
70.36
Absolute Min Price:
99.91
Min Price:
99.91
Dimensions:
[5.0, 5.0, 5.0]
qty:
21
simpleSku:
ODg4NQ:::12-DELU-12
sku:
ODg4NQ::4W:12-DELU-12@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Applications include: high pressure, high temperature, nitrogen, helium, flammable gases, hydraulic gases, corrosive media and pneumatic automation. |
| Brand | Dixon Valve & Coupling |
| Case Qty | 24 |
| Construction | ASTM material construction; 316 stainless steel |
| Description: | 3/4" Tube OD 316SS Union Elbow Instrumentation Fitting |
| Domestic/Import | Domestic |
| End Style | Tube |
| Features | Double collet (ferrule) swaging action; two positive seal points |
| Fitting/Connector Type | 45 deg Elbow |
| Installation | Cut tubing squarely and clean tube end thoroughly to remove burrs. Insert tubing into the assembly making sure the tubing seats firm against the shoulder of the body and the nut is finger tight. Tighten the nut with a wrench 1-1/4 turns, while holding the body with a second wrench. |
| Interchange | Fully interchangeable with Swagelok? and Parker A-Lok? fittings |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | 316 Stainless steel |
| Max Temp (?F) | 1200 |
| MFG Part #:, MPN | 12-DELU-12 |
| Min. Temp (?F) | -325 |
| Nominal Size, Tube O.D. | 3/4 in |
| Note | Instrumentation fittings come completely assembled. |
| Product | Elbows & Bends |
| Product Type | Simple product |
| Safety Notes | Never connect, disconnect or remake a fitting with pressure in the system. Make sure all fittings are properly installed. It is not recommended to go beyond the pressure rating of the tubing. Elongation could occur in the tubing, shrinking the wall thickness and cause potential harm. For proper sealing it is recommended that the tubing and fittings be of like material. Always use proper thread lubricant and sealants on tapered pipe threads. Never bleed a system by loosening a fitting. |
| Series | Instrumentation Fittings |
| Specifications | ASTM F 1387 Certified |
| Temperature Range | -325?F to 1200?F (-198?C to 648?C) |
| Temperature range | -325F to 1200F (-198C to 648C) |
| Temperature Rating | -325 to 1200 deg F |
| Tube O.D., Tube OD | 3/4" |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.496000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-12-DELU-12 | 70.36 | 112.576 | 1 | 2 | DIXON VALVE | 70.36 @ Qty: 2+ | ||
 | usmegastore.com | 12-DELU-12 | 82.79 | 132.464 | 1 | 2 | Dixon Valve | 82.79 @ Qty: 2+ | ||
 | Megadepot | 12-DELU-12 | 82.79 | 132.464 | 1 | 2 | Dixon Valve | 82.79 @ Qty: 2+ | ||
 | heavydutydepot.com | 12-DELU-12 | 82.79 | 165.58 | 2 | 2 | Dixon | 82.79 @ Qty: 2+ | ||
 | andersonprocess.com | 12-DELU-12 | 87.52 | 140.032 | 1 | 2 | 26 | Dixon Valve & Coupling | 0.496 | 87.52 @ Qty: 2+ |
 | MRO Supply | 2033574 | 92.11 | 147.376 | 1 | 2 | Dixon | 92.11 @ Qty: 2+ | ||
| kscdirect.com | DIX 12-DELU-12 | 95.88 | 153.408 | 1 | 2 | Dixon Valve & Coupling Co | 95.88 @ Qty: 2+ | |||
 | industrialzone.com | 12-DELU-12 | 127.86 | 255.72 | 2 | 2 | Dixon | 0.1 | 127.86 @ Qty: 2+ | |
 | Wilson | 12-DELU-12 | 290.8 | 465.28 | 1 | 2 | Dixon | 290.8 @ Qty: 2+ |
