mpn:
brand:
manufacturer:
MPN:
Description:
Type AA Adapter x Adapter
Weight:
1.77
Weight:
1.77 LB
Preferred Price:
293.82
Price:
293.82
Min Simple Price:
166.0
Absolute Min Price:
235.72
Min Price:
235.72
Dimensions:
[6.0, 4.0, 4.0]
qty:
21
simpleSku:
ODg4NQ:::2530-AA-AL
sku:
ODg4NQ::NS:2530-AA-AL@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed for use with liquids, consult Anderson Process for specific recommendations. |
| Brand Name, Series | Dixon? |
| Brand, Manufacturer | Dixon Valve & Coupling |
| Construction | Produced as a welded fabrication |

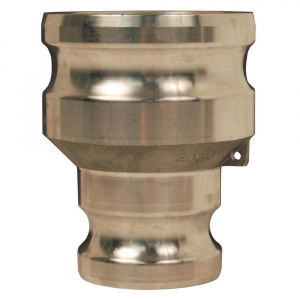

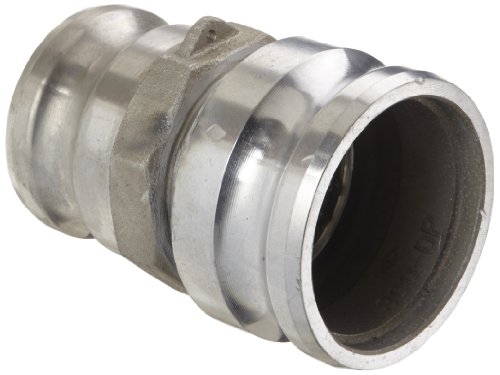

| Description: | 2-1/2" x 3" Spool Adapter 356T6 Alum Welded Fabrication |
| Domestic/Import | Domestic |
| End Style, Fitting/Connector Type | Adapter |
| How it works | To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged. Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic. |
| Manufacturer Part Number, MFG Part #:, MPN | 2530-AA-AL |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | 356T6 Aluminum, Aluminum |
| Max operating pressure (psi) | 125 |
| Maximum Operating Pressure, Pressure Rating, PSI | 125 PSI |
| Nominal Size | 2-1/2 x 3 in |
| Package Quantity | 1/Each |
| Product | Spool |
| Product Type | Simple product |
| Safety Notes | Under no circumstances should cam and groove couplings be used for compressed air or steam service!; Pressure rating is based on the seal of the mating part; Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70?F / 21?C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Anderson Process. |
| Size | 2-1/2 in x 3 in (65 mm x 75 mm), 2-1/2" x 3", 2-1/2" x 3" (65mm x 75mm) |
| Specifications | Produced to interchange with all product produced to Commercial Item Description A-A-59326D. |
| UPC: | 089109753796 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 1.765000 |
| Weight Lb | 1.7650 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-2530-AA-AL | 166.0 | 166.0 | 1 | In Stock | DIXON VALVE | 166.0 @ Qty: 1+ | ||
 | usmegastore.com | 2530-AA-AL | 182.9 | 182.9 | 1 | In Stock | Dixon Valve | 1.765 | 182.9 @ Qty: 1+ | |
 | Megadepot | 2530-AA-AL | 182.9 | 182.9 | 1 | In Stock | Dixon Valve | 1.765 | 182.9 @ Qty: 1+ | |
 | heavydutydepot.com | 2530-AA-AL | 182.9 | 182.9 | 1 | In Stock | Dixon | 182.9 @ Qty: 1+ | ||
 | MRO Supply | 103905 | 183.95 | 183.95 | 1 | In Stock | Dixon | 183.95 @ Qty: 1+ | ||
 | andersonprocess.com | 2530-AA-AL | 201.64 | 201.64 | 1 | In Stock | 26 | Dixon Valve & Coupling | 1.765 | 201.64 @ Qty: 1+ |
| kscdirect.com | DIX 2530-AA-AL | 220.93 | 220.93 | 1 | In Stock | Dixon Valve & Coupling Co | 220.93 @ Qty: 1+ | |||
 | industrialzone.com | 2530-AA-AL | 247.4 | 247.4 | 1 | In Stock | Dixon | 1.77 | 247.4 @ Qty: 1+ | |
| motionindustries.com | 03765494 | 289.06 | 289.06 | 1 | In Stock | Dixon Valve & Coupling Company, LLC | 289.06 @ Qty: 1+ | |||
 | hanessupply.com | 2530-AA-AL-10639 | 297.02 | 297.02 | 1 | In Stock | Dixon Valve & Coupling | 297.02 @ Qty: 1+ | ||
 | Wilson | 2530-AA-AL | 739.05 | 739.05 | 1 | In Stock | Dixon | 739.05 @ Qty: 1+ |
