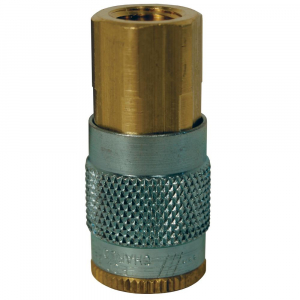

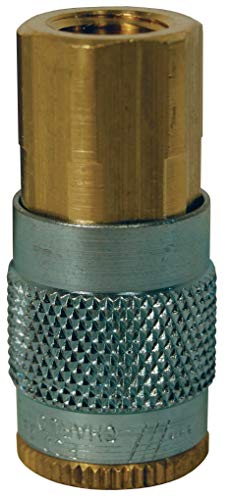

DIXON 2JF1-B 1/4" TRUFLATE COUPLER 1/8" NPTF 420802 - MROSupply.com
Weight:
0.21
Weight:
0.21 LB
Preferred Price:
14.49
Price:
14.49
Min Simple Price:
7.13
Absolute Min Price:
10.85
Min Price:
10.85
Dimensions:
[6.0, 4.0, 1.0]
qty:
21
simpleSku:
ODg4NQ:::2JF1-B
sku:
ODg4NQ::SM:2JF1-B@y0
condition:
11
seller:
andersonprocess.com
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Body Size | 1/4" |
| Brand | Dixon Valve & Coupling |
| Brand Name | DIXON? |
| Connection | Female NPT |
| Construction | Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Nitrile (Buna-N) seals are standard. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel sleeve and steel tubular valve. |
| Data | 3/4" Hex Size |
| Description: | 1/4 AUTOMOTIVE COUP, 1/8 F-NPTF BRASS |
| Dimensions | 0.88 in OD |
| End Style | Quick Disconnect Coupler x NPTF |
| Height (in) | 0.88 |
| Hex | 3/4" |
| Hex Size | 3/4 in |
| Interchange | Truflate Automotive Interchange; Parker 10 Series, Rectus 55KM and Tomco A2100/PT400 |
| Length | 1.83 in, 1.83", 1.83" (46.5mm) |
| Length (in) | 1.83 |
| Manufacturer | Dixon Valve & Coupling, Dixon Valve & Coupling Co |
| Manufacturer Part Number | 2JF1-B |
| Material | Brass |
| Max Temp (?F) | 250 |
| Maximum OD | 0.88" (22.4mm) |
| MFG Part #: | 2JF1-B |
| Min. Temp (?F) | -40 |
| MPN | 2JF1-B |
| Nominal Size | 1/8-27, 1/8 in - 27 |
| Package Quantity | 1/Each |
| Pressure Rating | 300 psi, See Product Details |
| Product | Couplers |
| Product Type | Simple product |
| Safety Notes | It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure. |
| Series | J Series, J-Series Automotive |
| Specifications | Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 10,500 PSI (724 bar) Burst; Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst |
| Standard Approvals | ROHS Compliant |
| Supplier: | Dixon Valve & Coupling Co |
| Temperature Range | -40?F to +250?F (-40?C to +121?C) |
| Temperature Rating | -40 to 250?F, -40 to 250 deg F |
| Thread | NPTF |
| Thread Size | 1/8" |
| Type | Tru-Flate Automotive |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.210000 |
| Weight Lb | 0.2100 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | andersonprocess.com | 2JF1-B | 7.13 | 7.13 | 1 | In Stock | 26 | Dixon Valve & Coupling | 0.21 | 7.13 @ Qty: 1+ |
 | Megadepot | 2JF1-B | 7.34 | 7.34 | 1 | In Stock | Dixon Valve | 0.21 | 7.34 @ Qty: 1+ | |
 | usmegastore.com | 2JF1-B | 7.34 | 7.34 | 1 | In Stock | Dixon Valve | 0.21 | 7.34 @ Qty: 1+ | |
 | heavydutydepot.com | 2JF1-B | 7.34 | 45.508 | 14 | In Stock | Dixon | 7.34 @ Qty: 14+ | ||
| kscdirect.com | DIX 2JF1-B | 7.82 | 7.82 | 1 | In Stock | Dixon Valve & Coupling Co | 7.82 @ Qty: 1+ | |||
| Amazon | B00DE8HSSM | 8.08 | 8.08 | 1 | In Stock | Dixon Valve & Coupling | 8.08 @ Qty: 1+ | |||
 | hanessupply.com | 2JF1-B-10639 | 13.6 | 13.6 | 1 | In Stock | Dixon Valve & Coupling | 13.6 @ Qty: 1+ | ||
 | Wilson | 2JF1-B | 24.37 | 24.37 | 1 | In Stock | Dixon | 24.37 @ Qty: 1+ |
