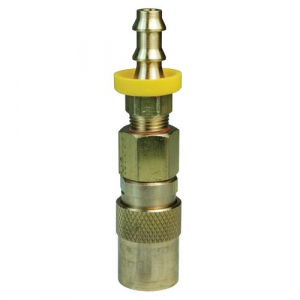

DIXON 3CMB3-B 3/8" MOLD COUP 3/8" P-LOC VALVED 200207-3 - MROSupply.com
Weight:
0.018125
Weight:
0.018125 LB
Preferred Price:
341.96
Price:
341.96
Min Simple Price:
12.88
Absolute Min Price:
274.33
Min Price:
274.33
Dimensions:
[4.0, 4.0, 4.0]
qty:
1
simpleSku:
NDkxNQ:::3CMB3-B
sku:
NDkxNQ::BL:3CMB3-B@x15
condition:
11
seller:
andersonprocess.com
amzMan:
dixon valve
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Body Size, Hose ID | 3/8" |
| Brand | Dixon Valve & Coupling |
| Connection | Hose Barb |
| Construction | Machined components are manufactured using solid bar stock; Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Silicone gaskets and valve O-rings are standard |
| Description: | 3/8 MOLD COUP, 3/8 P-LOC BRASS |
| Dimensions | 0.95 in OD |
| End Style | Push-Loc Barb |
| Interchange | Mold Coolant Interchange; Foster Series- FJT, Hansen Flo-Temp, Tomco MC-Series, Parker Moldmate, DME Jiffy-Tite |
| Length | 3.28", 3.28 in |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | Brass |
| Max Temp (?F) | 400 |
| Maximum OD | 0.95" |
| MFG Part #:, MPN | 3CMB3-B |
| Min. Temp (?F) | -90 |
| Nominal Size | 3/8 in |
| Pressure Rating | 300 psi |
| Product | Couplers |
| Product Type | Simple product |
| Safety Notes | Maximum working and burst pressure is based on a coupled set, Contact Anderson Process for pressure ratings. |
| Series | CM-Series Industrial Mold, DQC CM |
| Specifications | Rated pressure for connected Brass Valved Coupler and Brass Plug: 300 PSI (20 bar) Maximum Working and 6,700 PSI (450 bar) Burst; Rated pressure for connected Brass Valved Coupler and Steel Plug: 500 PSI (35 bar) Maximum Working and 6,100 PSI (400 bar) Burst |
| Temperature Range | -90?F to +400?F (-68?C to +205?C) |
| Temperature Rating | -90 to 400 deg F |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.290000 |
| Weight Lb | 0.2900 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | andersonprocess.com | 3CMB3-B | 12.88 | 121.072 | 1 | 15 | 26 | Dixon Valve & Coupling | 0.29 | 12.88 @ Qty: 15+ |
 | Megadepot | 3CMB3-B | 13.14 | 123.516 | 1 | 15 | Dixon Valve | 0.29 | 13.14 @ Qty: 15+ | |
 | usmegastore.com | 3CMB3-B | 13.14 | 123.516 | 1 | 15 | Dixon Valve | 0.29 | 13.14 @ Qty: 15+ | |
 | heavydutydepot.com | 3CMB3-B | 13.14 | 160.308 | 8 | 15 | Dixon | 13.14 @ Qty: 15+ | ||
| kscdirect.com | DIX 3CMB3-B | 14.1 | 132.54 | 1 | 15 | Dixon Valve & Coupling Co | 14.1 @ Qty: 15+ | |||
 | MRO Supply | 2933238 | 18.76 | 183.848 | 2 | 15 | 14 | Dixon | 0.29 | 18.76 @ Qty: 15+ |
 | Wilson | 3CMB3-B | 41.61 | 391.134 | 1 | 15 | Dixon | 41.61 @ Qty: 15+ |
