mpn:
brand:
manufacturer:
MPN:
Description:

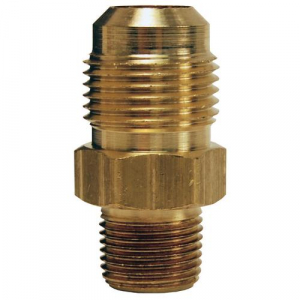

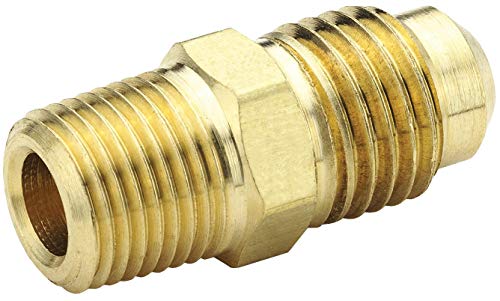

SAE 45? Flare Male Connector
Weight:
0.28
Weight:
0.28 LB
Preferred Price:
21.98
Price:
21.98
Min Simple Price:
11.79
Absolute Min Price:
17.14
Min Price:
17.14
qty:
21
simpleSku:
ODg4NQ:::48F-12-12
sku:
ODg4NQ::FG:48F-12-12@y0
condition:
11
seller:
industrialzone.com
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Angle | 45? |
| Application | Manufactured especially for hard-to-hold liquids and gases; use with copper, brass, aluminum and welded steel hydraulic tubing that can be flared |
| Brand | Dixon Valve & Coupling |
| Brand Name | DIXON? |
| Case Qty | 40 |
| Construction | Listed with Underwriter's Laboratories for flammable liquid, marine, refrigeration and gas applications. Meets functional requirements of SAE J512 and J513, ASA and MS (Military Standards). reference SAE 010102 |
| Data | 1-1/16" Hex Size |
| Description: | Brass SAE 45? Flare Male Connector 3/4" Tube,3/4" Pipe,1-1/16" Strght |
| End Style | SAE Flare x MNPT |
| Hex | 1-1/16", 1 1/16 in |
| Hex Size | 1-1/16 in |
| Interchange | Cut tubing squarely and clean tube end thoroughly to remove burrs. Place nut onto tube. Place threaded end of nut toward end of tube. Flare tube end with flaring tool to provide 45? flare. Clamp tube flare between nut and nose of fitting body by screwing nut on finger-tight. Tighten with a wrench an additional 1/4 turn for metal-to-metal seal. |
| Manufacturer | Dixon Valve & Coupling, Dixon Valve & Coupling Co |
| Manufacturer Part Number | 48F-12-12 |
| Material | Brass |
| Max Temp (?F) | 250 |
| MFG Part #: | 48F-12-12 |
| Min. Temp (?F) | -65 |
| MPN | 48F-12-12 |
| Nominal Size | 3/4 in |
| Options | Manufactured from CA 360, CA 345 or CA377 brass |
| Package Quantity | 1/Each |
| Pipe Size | 3/4", 3/4 in |
| Pressure Rating | 550 PSI |
| Product | Adapters & Connectors |
| Product Type | Simple product |
| PSI | 550 PSI |
| Safety Notes | The PSI rating given is based on a temperature of 73?F (23?C) using copper tubing. Temperature and type of tubing used are important factors in working pressure ranges. |
| Series | SAE 45? Flare |
| Specifications | Economical fitting resists mechanical pullout; easy to disassemble and may be reassembled repeatedly, for a leak-proof connection |
| Standard Approvals | CA 360/CA 345/CA 377 Brass |
| Supplier: | Dixon Valve & Coupling Co |
| Temperature Range | -65?F to 250?F (-54?C to 121?C) |
| Temperature range | -65F to 250F (-54C to 121C) |
| Temperature Rating | -65 to 250?F, -65 to 250 deg F |
| Thread | Straight |
| Thread Size | 1-1/16"-14 |
| Tube Size | 3/4" |
| Tube size | 3/4 in |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.290000 |
| Weight Lb | 0.2900 |
| Working Pressure | 550 PSI |
| Working pressure (psi) | 550 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | industrialzone.com | 48F-12-12 | 11.79 | 87.246 | 17 | In Stock | Dixon | 0.29 | 11.79 @ Qty: 17+ | |
 | toolfetch.com | DIX-48F-12-12 | 12.92 | 12.92 | 1 | In Stock | DIXON VALVE | 12.92 @ Qty: 1+ | ||
| motionindustries.com | 06642112 | 13.38 | 13.38 | 1 | In Stock | Dixon Valve & Coupling Company, LLC | 13.38 @ Qty: 1+ | |||
 | Radwell | 48F-12-12 | 14.0 | 14.0 | 1 | In Stock | DIXON | 14.0 @ Qty: 1+ | ||
 | andersonprocess.com | 48F-12-12 | 14.88 | 14.88 | 1 | In Stock | 26 | Dixon Valve & Coupling | 0.29 | 14.88 @ Qty: 1+ |
 | usmegastore.com | 48F-12-12 | 15.11 | 15.11 | 1 | In Stock | Dixon Valve | 0.29 | 15.11 @ Qty: 1+ | |
 | Megadepot | 48F-12-12 | 15.11 | 15.11 | 1 | In Stock | Dixon Valve | 0.29 | 15.11 @ Qty: 1+ | |
 | heavydutydepot.com | 48F-12-12 | 15.11 | 51.374 | 7 | In Stock | Dixon | 15.11 @ Qty: 7+ | ||
| kscdirect.com | DIX 48F-12-12 | 16.3 | 16.3 | 1 | In Stock | Dixon Valve & Coupling Co | 16.3 @ Qty: 1+ | |||
 | MRO Supply | 104975 | 18.51 | 25.914 | 2 | In Stock | Dixon | 18.51 @ Qty: 2+ | ||
 | hanessupply.com | 48F-12-12-10639 | 21.91 | 21.91 | 1 | In Stock | Dixon Valve & Coupling | 21.91 @ Qty: 1+ |
