mpn:
brand:
manufacturer:
MPN:
Description:

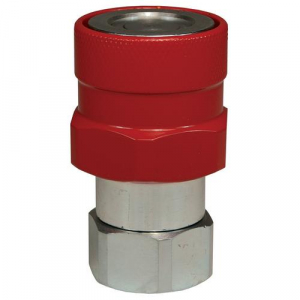

DIXON 4VEPF4-BOP 1/2" VEP COUP 1/2" NPTF BOP 201200-4 - MROSupply.com
Weight:
0.328125
Weight:
0.328125 LB
Preferred Price:
156.83
Price:
156.83
Min Simple Price:
85.75
Absolute Min Price:
121.76
Min Price:
121.76
Dimensions:
[4.0, 4.0, 4.0]
qty:
21
simpleSku:
ODEwMg:::4VEPF4-BOP
sku:
ODEwMg::6P:4VEPF4-BOP@y0
condition:
11
seller:
Megadepot
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Application | Designed specifically for blow-out preventer systems on drilling rigs |
| Body Size | 1/2" |
| Brand | Dixon Valve & Coupling |
| Brand Name | DIXON? |
| Connection | Female NPT |
| Construction | Machined components are manufactured using solid steel bar stock. Stainless steel retaining rings and springs maximize corrosion resistance and extend service life; Steel components are plated using ROHS Compliant Zinc Nickel. Red powder coated components and external O-rings for easy BOP service identification; Blow-out Preventer (BOP) coupling critical seals are severe service FK; PTFE Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage. |
| Data | 5000 PSI at 70?F; 1.18" Hex Size |
| Description: | 1/2 VEP-BOP COUP, 1/2 F-NPTF STEEL |
| Dimensions | 1.98 in OD |
| End Style | Female NPTF |
| Finish | Nickel Plated Zinc |
| Flow | 17.5 GPM (66 L/min) |
| Height (in) | 1.98 |
| Hex | 30 mm |
| Hex Size | 30 mm |
| Interchange | Stucchi VEP/VEP-HD Series; DNP FSI-BOP Series |
| Length | 3.08" (78.2 mm), 3.08 in |
| Length (in) | 3.08 |
| Manufacturer | Dixon Valve & Coupling, Dixon Valve & Coupling Co |
| Manufacturer Part Number | 4VEPF4-BOP |
| Material | Steel |
| Maximum OD | 1.98" (50.3 mm) |
| Maximum Operating Pressure | 5,500 PSI (38 MPa) |
| MFG Part #: | 4VEPF4-BOP |
| MPN | 4VEPF4-BOP |
| Nominal Size | 1/2 in - 14, 1/2-14 |
| Note | Rated Flow ?P=21.75 PSI |
| Package Quantity | 1/Each |
| Pressure Rating | 5500 psi |
| Product | Couplers |
| Product Type | Simple product |
| Seal | FKM |
| Series | VEP-BOP Series Blowout Prevention, DQC VEP-BOP |
| Specifications | BOP couplings have been fire tested and Lloyd's certified to 700?C (1300?F) in accordance with API 16D. Certificate available upon request. Maximum Impulse Pressure : 8000 PSI (55 MPa); Burst Pressure Connected: 22000 PSI (152 MPa); Burst Pressure Coupler: 18000 PSI (124 MPa); Maximum Pressure Connect & Disconnect : 4500 PSI (31 MPa); Lloyd's Test Pressure: 5,000 PSI |
| Standard Approvals | RoHS Compliant |
| Supplier: | Dixon Valve & Coupling Co |
| Temperature Rating | 1300 deg F, 1300?F |
| Thread | Female NPTF, NPTF |
| Thread Size | 1/2" - 14, 1/2"-14 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 5.250000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Megadepot | 4VEPF4-BOP | 85.75 | 85.75 | 1 | In Stock | Dixon Valve | 85.75 @ Qty: 1+ | ||
 | usmegastore.com | 4VEPF4-BOP | 85.75 | 85.75 | 1 | In Stock | Dixon Valve | 85.75 @ Qty: 1+ | ||
 | heavydutydepot.com | 4VEPF4-BOP | 85.75 | 120.05 | 2 | In Stock | Dixon | 85.75 @ Qty: 2+ | ||
 | andersonprocess.com | 4VEPF4-BOP | 86.01 | 86.01 | 1 | In Stock | 26 | Dixon Valve & Coupling | 5.25 | 86.01 @ Qty: 1+ |
| kscdirect.com | DIX 4VEPF4-BOP | 94.23 | 94.23 | 1 | In Stock | Dixon Valve & Coupling Co | 94.23 @ Qty: 1+ | |||
 | MRO Supply | 2933667 | 114.58 | 114.58 | 1 | In Stock | 14 | Dixon | 114.58 @ Qty: 1+ | |
 | hanessupply.com | 4VEPF4-BOP-10639 | 171.64 | 171.64 | 1 | In Stock | Dixon Valve & Coupling | 171.64 @ Qty: 1+ | ||
 | Wilson | 4VEPF4-BOP | 308.21 | 308.21 | 1 | In Stock | Dixon | 308.21 @ Qty: 1+ |
