mpn:
brand:
manufacturer:
MPN:
Weight:
0.019375
Weight:
0.019375 LB
Preferred Price:
36.9
Price:
36.9
Min Simple Price:
20.18
Absolute Min Price:
28.65
Min Price:
28.65
Dimensions:
[3.0, 3.0, 3.0]
qty:
21
simpleSku:
ODg4NQ:::71NAB88VS
sku:
ODg4NQ::9E:71NAB88VS@y0
condition:
11
seller:
andersonprocess.com
amzMan:
dixon
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Application | Designed for use in air brake systems or cab controls. Utilize ribbed sleeve for compression and positive grip. Compatible tubing: SAE J844 type A and B. |
| Brand | Dixon Valve & Coupling |
| Construction | Machined from CA260, CA345 or CA377 brass; pre-applied thread sealant; thread sealant may be white or burnt orange |
| Features | Positive Grip |
| Flow | .33" |
| Installation | Cut tubing squarely- maximum of 15? angle allowable. Check that port or mating part is clean and free of debris. Insert tubing into fittings until it bottoms on seat. Tighten nut with wrench until one thread remains visible on the fittings body; (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench-tightened according to the tube size used. |
| Material | Brass |
| Max Temp (?F) | 200 |
| Min. Temp (?F) | -40 |
| MPN | 71NAB88VS |

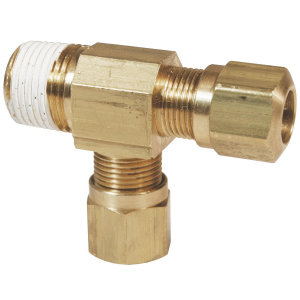

| Product | Tees |
| Product Type | Simple product |
| PSI | 150 PSI |
| Specifications | Meets D.O.T FMVSS 571.106 and SAE J246; ref. SAE 100424 BA |
| Temperature Range | -40?F to 200?F |
| Thread | 11/16 in-20 x 1/2 in, Straight x Pipe |
| Thread Size | 11/16"-20 x 1/2" |
| Tube O.D. | 1/2 in |
| Tube Size | 1/2" |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.305000 |
| Weight Lb | 0.3050 |
| Working Pressure | 150 PSI |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | andersonprocess.com | 71NAB88VS | 20.18 | 20.18 | 1 | In Stock | 26 | Dixon Valve & Coupling | 0.305 | 20.18 @ Qty: 1+ |
 | toolfetch.com | DIX-71NAB88VS | 20.46 | 20.46 | 1 | In Stock | DIXON VALVE | 20.46 @ Qty: 1+ | ||
 | heavydutydepot.com | 71NAB88VS | 21.83 | 56.758 | 5 | In Stock | Dixon | 21.83 @ Qty: 5+ | ||
 | usmegastore.com | 71NAB88VS | 24.3 | 24.3 | 1 | In Stock | Dixon Valve | 0.305 | 24.3 @ Qty: 1+ | |
 | MRO Supply | 105728 | 30.98 | 43.372 | 2 | In Stock | Dixon | 30.98 @ Qty: 2+ | ||
 | industrialzone.com | 71NAB88VS | 32.26 | 109.684 | 7 | In Stock | Dixon | 0.31 | 32.26 @ Qty: 7+ | |
 | Wilson | 71NAB88VS | 59.68 | 59.68 | 1 | In Stock | Dixon | 59.68 @ Qty: 1+ |
