mpn:
brand:
manufacturer:
MPN:
Description:

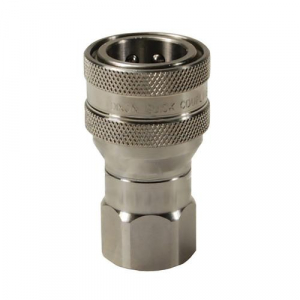

DIXON 8KF8-SS 1" ISO-A COUPLER 1" NPTF 316SS 201344-8 - MROSupply.com
Weight:
0.328125
Weight:
0.328125 LB
Preferred Price:
531.53
Price:
531.53
Min Simple Price:
300.3
Absolute Min Price:
426.42
Min Price:
426.42
Dimensions:
[4.0, 4.0, 4.0]
qty:
21
simpleSku:
NDkxNQ:::8KF8-SS
sku:
NDkxNQ::X6:8KF8-SS@y0
condition:
11
seller:
Megadepot
amzMan:
dixon valve
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Body Size | 1" |
| Brand Name | DIXON? |
| Brand, Manufacturer | Dixon Valve & Coupling |
| Connection | Female NPT |
| Construction | Machined components are manufactured using solid bar stock; Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Nitrile (Buna-N) seals are standard; Couplers have a PTFE Anti-Extrusion ring. Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection. |
| Data | 1-5/8" Hex Size |
| Description: | 1 ISO-A COUP, 1 F-NPTF 316SS |
| Dimensions | 2.1 in OD |
| End Style, Thread | Female NPTF |
| Features | Poppet style shut-off valve; to connect, simply retract sleeve, insert plug, and release sleeve |
| Finish | Polished Chrome |
| Height (in) | 2.1 |
| Hex | 1-5/8" |
| Hex Size | 1-5/8 in |
| Interchange | Interchangeable to ISO7241 Series 'A'; Parker 6600-Series, Aeroquip/Eaton FD56 (5600); Faster ANV, Hansen HA 15000, Safeway S56-Series |
| Length | 3.88" (98.6 mm.), 3.88", 3.88 in |
| Length (in) | 3.88 |
| Manufacturer Part Number, MFG Part #:, MPN | 8KF8-SS |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | 316 Stainless Steel |
| Max Temp (?F) | 250 |
| Maximum OD | 2.10" (53.3 mm.) |
| Min. Temp (?F) | -40 |
| Nominal Size | 1- 11-1/2, 1 in - 11-1/2 |
| Note | Please Contact Anderson Process for working pressures |
| Options | Contact Anderson Process for all available option adders; Standard seal options include: FKM, EPDM, FDA FKM, Mil-Nitrile, Fuel Nitrile and Silicone; Kalrez? seal options include: 4079, 6375 and 7075; Valve options include: Unvalved, actuator, steel, brass, 303 stainless steel and 316 stainless steel; Locking sleeve option available; Oxy-Clean treatment is available |
| Package Quantity | 1/Each |
| Pressure Rating | 4000 psi |
| Product | Couplers |
| Product Type | Simple product |
| Series | K-Series ISO-A, DQC K |
| Standard Approvals | ISO-A 5600 |
| Temperature Range | -40?F to +250?F (-40?C to +121?C) |
| Temperature Rating | -40 to 250?F, -40 to 250 deg F |
| Thread Size | 1" - 11-1/2, 1"-11-1/2 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 5.250000 |
| Weight, Lb | 1.6580 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Megadepot | 8KF8-SS | 300.3 | 300.3 | 1 | In Stock | Dixon Valve | 1.658 | 300.3 @ Qty: 1+ | |
 | usmegastore.com | 8KF8-SS | 300.3 | 300.3 | 1 | In Stock | Dixon Valve | 1.658 | 300.3 @ Qty: 1+ | |
 | heavydutydepot.com | 8KF8-SS | 300.3 | 300.3 | 1 | In Stock | Dixon | 300.3 @ Qty: 1+ | ||
 | andersonprocess.com | 8KF8-SS | 347.88 | 347.88 | 1 | In Stock | 26 | Dixon Valve & Coupling | 5.25 | 347.88 @ Qty: 1+ |
| kscdirect.com | DIX 8KF8-SS | 381.14 | 381.14 | 1 | In Stock | Dixon Valve & Coupling Co | 381.14 @ Qty: 1+ | |||
 | MRO Supply | 2934006 | 386.18 | 386.18 | 1 | In Stock | 14 | Dixon | 386.18 @ Qty: 1+ | |
| Airline Hydraulics | DIXON 8KF8-SS | 608.46 | 608.46 | 1 | In Stock | Dixon Quick Coupling | 608.46 @ Qty: 1+ | |||
 | hanessupply.com | 8KF8-SS-10639 | 662.68 | 662.68 | 1 | In Stock | Dixon Valve & Coupling | 662.68 @ Qty: 1+ | ||
 | Wilson | 8KF8-SS | 1246.66 | 1246.66 | 1 | In Stock | Dixon | 1246.66 @ Qty: 1+ |
