Dixon Valve & Coupling G400-F-BR
Dixon Valve & Couplingzoom

Dixon Valve & Coupling G400-F-BR

mpn:
G400-F-BR
brand:
DIXON
manufacturer:
DIXON
MPN:
G400-F-BR
Weight:
4.0
Weight:
2.7 LB
Preferred Price:
126.01
Min Offer Price:
84.69
Price:
126.01
Min Simple Price:
68.86
Absolute Min Price:
97.78
Min Price:
97.78
Dimensions:
[5.0, 5.0, 5.0]
qty:
21
simpleSku:
ODg4NQ:::G400-F-BR
sku:
ODg4NQ::BY:G400-F-BR@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
True

Attributes

Key ^Value
ApplicationDesigned for use with liquids, consult Anderson Process for specific recommendations.
Basic Pipe Fitting MaterialMetal
Basic Pipe Fitting Shape, Fitting/Connector Type, Specific Pipe Fitting ShapeAdapter
Body Material, MaterialBrass
Brand NameDIXON?
Brand, ManufacturerDixon Valve & Coupling
ConnectionMale NPT
Connection TypeNPT
Coupler Size, Coupling Size, Pipe Size, Pipe Size (Fittings), Pipe Size - Pipe Fitting, Size4"
Coupling Type, TypeType F
Description:4" Global Brass Male NPT x Male Adapter
Domestic/ImportDomestic
End Style, Pipe Fitting Connection TypeMale Adapter x MNPT
FeaturesMade to Dixon specifications and branded Dixon.
Fittings Sub-CategoryAdapters
Gasket MaterialBuna-N
Hose Fitting GenderMale
Hose Fitting Size, Nominal Size, Size4 in
How it worksTo make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged. Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic.
Includes Locking ArmNo
ItemCam and Groove Adapter
Length4-15/32 in
Length (in)4.469
Manufacturer Part Number, MFG Part #:, MPNG400-F-BR
Manufacturer, Supplier:Dixon Valve & Coupling Co
MaterialASTMC38000 Forged Brass, ASTMC 38000 Forged Brass
Max operating pressure (psi)100
Max. Pressure, Maximum Operating Pressure, Pressure Rating, PSI100 PSI
Overall Length4-15/32"
Package Quantity1/Each
Plug Length2-1/16"
Plug Outside Dia.4-23/32"
ProductType F Adapter
Product TypeSimple product
Safety NotesUnder no circumstances should cam and groove couplings be used for compressed air or steam service!; Pressure rating is based on the seal of the mating part; Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70?F / 21?C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Anderson Process.
SeriesGlobal
SpecificationsDesigned to interchange with all products produced to A-A-59326D.
Standard ApprovalsDesigned to interchange with all products produced to A-A-59326D
StandardsA-A-59326D
Thread Size4"-8
WARNING!This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov
Weight3.720000
Weight Lb3.7200

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomtoolfetch.comDIX-G400-F-BR68.8668.861In StockDIXON VALVE68.86 @ Qty: 1+
thumbzoomandersonprocess.comG400-F-BR76.1376.131In Stock26Dixon Valve & Coupling3.7276.13 @ Qty: 1+
thumbzoomusmegastore.comG400-F-BR83.483.41In StockDixon Valve3.7283.4 @ Qty: 1+
thumbzoomMegadepotG400-F-BR83.483.41In StockDixon Valve3.7283.4 @ Qty: 1+
thumbzoomheavydutydepot.comG400-F-BR83.4116.762In StockDixon83.4 @ Qty: 2+
thumbzoomsustainablesupply.comC192665185.4685.461In StockDixon3.8985.46 @ Qty: 1+
kscdirect.comDIX G400-F-BR85.9285.921In StockDixon Valve & Coupling Co85.92 @ Qty: 1+
thumbzoomindustrialzone.comG400-F-BR86.65155.973In StockDixon3.7286.65 @ Qty: 3+
thumbzoomMRO Supply11036293.0593.051In StockDixon93.05 @ Qty: 1+
thumbzoomZoroG260191693.0993.09130Dixon Valve & Coupling3.8993.09 @ Qty: 1+
Airline HydraulicsDIXON G400-F-BR122.16122.161In StockDixon Quick Coupling122.16 @ Qty: 1+
thumbzoomhanessupply.comG400-F-BR-10639123.35123.351In StockDixon Valve & Coupling123.35 @ Qty: 1+
motionindustries.com04064822130.84130.841In StockDixon Valve & Coupling Company, LLC130.84 @ Qty: 1+
thumbzoomRaptor SuppliesAE3CWH180.4408515180.44085151In StockDIXON180.4408515 @ Qty: 1+
thumbzoomWilsonG400-F-BR319.19319.191In StockDixon319.19 @ Qty: 1+
B007YZIQBY
99.50 USD
Dixon Valve & Coupling G400-F-BR

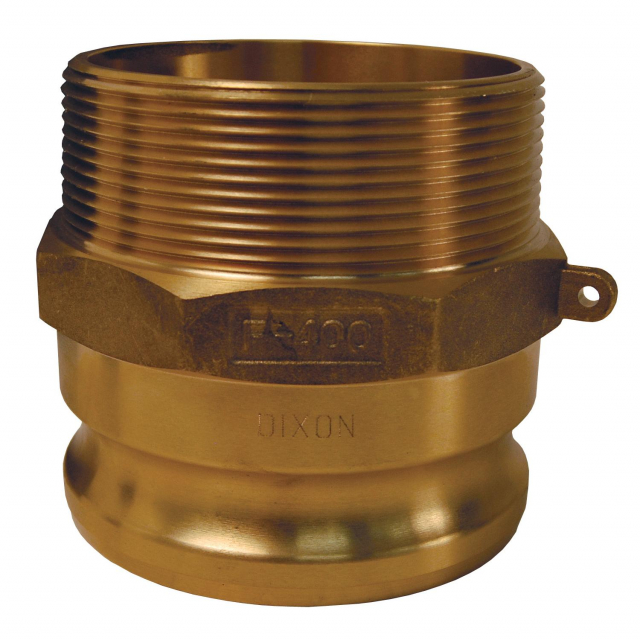

Dixon G400-F-BR ASTMC 38000 Forged Brass Global Type F Cam and Groove Hose Fitting, 4" Plug x 4" NPT Male

Dixon G400-F-BR ASTMC 38000 Forged Brass Global Type F Cam and Groove Hose Fitting, 4" Plug x 4" NPT Malezoom
