mpn:
brand:
manufacturer:
MPN:
Description:

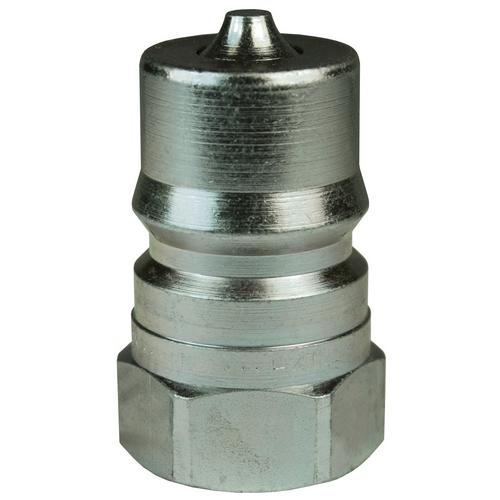

H-Series ISO-B Female Plug
Weight:
0.10875
Weight:
0.10875 LB
Preferred Price:
124.62
Price:
124.62
Min Simple Price:
6.81
Absolute Min Price:
96.7
Min Price:
96.7
Dimensions:
[12.0, 12.0, 10.0]
qty:
1
simpleSku:
ODEwMg:::H3F3
sku:
ODEwMg::XY:H3F3@y1
condition:
11
seller:
andersonprocess.com
amzMan:
dixon
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Body Size | 3/8", 3/8 in |
| Brand | Dixon Valve & Coupling |
| Brand Name | DIXON? |
| Burst Pressure | 16500 PSI (450 bar) |
| Connection | Female NPT |
| Construction | Machined components are manufactured using solid bar stock; Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel Nipples are hardened to provide heavy duty performance and resist brinelling. |
| Data | 7/8" Hex Size |
| Description: | 3/8 ISO-B PLUG, 3/8 F-NPTF STEEL |
| Diameter | 7/8 in |
| Dimensions | 7/8 in Dia |
| Domestic/Import | Domestic |
| End Style | FNPT |

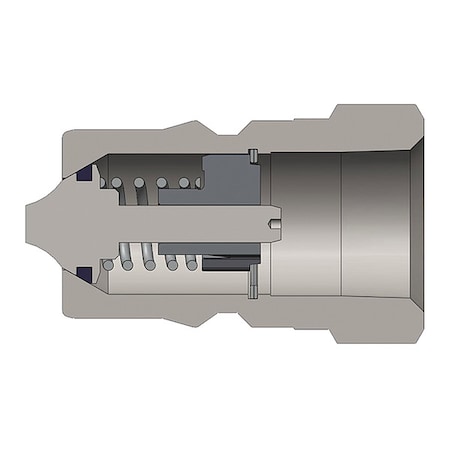

| Features | Poppet style shut-off valves; Designed to prevent fluid loss when disconnected |
| Height (in) | 0.875 |
| Hex | 7/8", 7/8 in |
| Hex Size | 7/8 in |
| Interchange | Meets dimensional requirements of ISO 7241 Series B; Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX |
| Item | H-Series FNPT, 3/8" Plug, 3/8",ST |
| Length | 1.70 in (43.2 mm), 1.70" (43.2mm), 1-11/16 in, 1.70" |
| Length (in) | 1.687 |
| Manufacturer | Dixon Valve & Coupling, Dixon Valve & Coupling Co |
| Manufacturer Part Number | H3F3 |
| Material | Steel |
| Max OD | 0.97 in (24.6 mm) |
| Max operating pressure | 4000 PSI (275 bar) |
| Max Temp (?F) | 250 |
| Maximum OD | 0.97" (24.6mm) |
| Maximum Operating Pressure | 4000 PSI (275 bar) |
| MFG Part #: | H3F3 |
| Min. Temp (?F) | -40 |
| MPN | H3F3 |
| Nominal Size | 3/8 in - 18, 3/8-18 |
| Old Part Number | 17-363 |
| On Hand: | In Stock - Available for immediate shipment. |
| Options | Contact Anderson Process for all available option adders; Oxy-Clean treatment is available |
| Package Quantity | 1, 1/Each |
| Pressure Rating | 4000 PSI |
| Product | Plugs |
| Product Type | Simple product |
| PSI | 4000 PSI |
| PSI (Burst) | 16500 PSI |
| Series | H-Series ISO-B Industrial, H Series |
| Standard Approvals | ISO 7241-1 |
| Supplier: | Dixon Valve & Coupling Co |
| Temperature Range | -40?F to +250?F (-40?C to +121?C) |
| Temperature range | -40F to 250F (-40C to 121C) |
| Thread | Female NPTF, NPTF |
| Thread Size | 3/8"-18 |
| Type | Interchange |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.130000 |
| Weight Lb | 0.1300 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | andersonprocess.com | H3F3 | 6.81 | 100.788 | 1 | 24 | 26 | Dixon Valve & Coupling | 0.13 | 6.81 @ Qty: 24+ |
 | usmegastore.com | H3F3 | 7.01 | 103.748 | 1 | 24 | Dixon Valve | 0.13 | 7.01 @ Qty: 24+ | |
 | heavydutydepot.com | H3F3 | 7.01 | 143.004 | 15 | 24 | Dixon | 7.01 @ Qty: 24+ | ||
 | Megadepot | H3F3 | 7.06 | 104.488 | 1 | 24 | Dixon Valve | 0.13 | 7.06 @ Qty: 24+ | |
| kscdirect.com | DIX H3F3 | 7.46 | 110.408 | 1 | 24 | Dixon Valve & Coupling Co | 7.46 @ Qty: 24+ | |||
| Turner Supply | 746417363 | 9.35 | 138.38 | 1 | 24 | Dixon Valve & Coupling | 9.35 @ Qty: 24+ | |||
 | Purvis | H3F3 | 10.58 | 156.584 | 1 | 24 | Dixon Valve | 10.58 @ Qty: 24+ | ||
 | MRO Supply | 2934652 | 10.71 | 171.36 | 4 | 24 | Dixon | 10.71 @ Qty: 24+ | ||
 | Zoro | G6552476 | 11.19 | 165.612 | 1 | 24 | Dixon Valve & Coupling | 1.74 | 11.19 @ Qty: 24+ | |
| Airline Hydraulics | DIXON H3F3 | 11.88 | 175.824 | 1 | 24 | Dixon Quick Coupling | 11.88 @ Qty: 24+ | |||
 | hanessupply.com | H3F3-10639 | 12.96 | 191.808 | 1 | 24 | Dixon Valve & Coupling | 12.96 @ Qty: 24+ | ||
 | Wilson | H3F3 | 20.65 | 305.62 | 1 | 24 | Dixon | 20.65 @ Qty: 24+ |
