mpn:
brand:
manufacturer:
MPN:
Description:

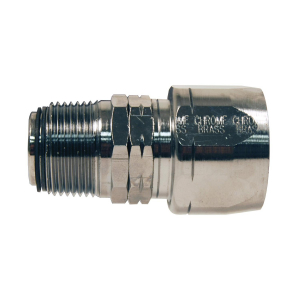

Dubl-Grip? Field Attachable Swivel Coupling for Curb Pump Hose
Weight:
0.23625
Weight:
0.23625 LB
Preferred Price:
260.27
Price:
260.27
Min Simple Price:
29.41
Absolute Min Price:
208.81
Min Price:
208.81
Dimensions:
[12.0, 12.0, 10.0]
qty:
1
simpleSku:
NDkxNQ:::H611
sku:
NDkxNQ::X3:H611@x5
condition:
11
seller:
toolfetch.com
amzMan:
dixon valve
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Brand Name | DIXON? |
| Brand, Manufacturer | Dixon Valve & Coupling |
| Description: | Dubl-Grip Swivel Re-Attachable 2307780000, Brass, Viton O-Ring |
| Domestic/Import | Domestic |
| End Style | NPT Swivel |
| Features | Two-piece re-attachable coupling made of chrome-plated brass for pump hose. Streamlined design prevents damage to hose and fits smartly on new pump equipment. Wide, flat surfaces of body threads protect inside of hose from breaking. Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing. Hose is gripped on its full circumference in Two places, ensuring a rigid leak-proof connection. Couplings have standard male NPT threads; Worn portion of hose can be removed and Dubl-Grip? can be reapplied; Octagonal shape |
| Finish | Polished Chrome |
| Hose I.D., Nominal Size | 1 in |
| Hose ID, Size, Thread Size | 1" |
| Hose O.D. | 1 1/2 in |
| Hose OD | 1-1/2" |
| Installation | Easy assembly: hose is held in position by sleeve as body is threaded home, only a wrench is required to assemble the Dubl-Grip? |
| Item | Curb Pump Hose,Coupling NPT 1",OD1-1/2" |
| Length | 3-1/8 in |
| Length (in) | 3.125 |
| Manufacturer Part Number, MFG Part #:, MPN | H611 |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | Chrome Plated Brass, Chrome-Plated Brass, Brass |
| Package Quantity | 1/Each |
| Product | Pump Hose Couplings |
| Product Type | Simple product |
| Safety Notes | Reattach static wire if required. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. |
| Series | Dubl-Grip?, Holedall? |
| Specifications | UL Approved |
| Standard Approvals | UL Listed |
| Thread | NPT |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.850000 |
| Weight Lb | 0.8500 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-H611 | 29.41 | 29.41 | 1 | In Stock | DIXON VALVE | 29.41 @ Qty: 1+ | ||
 | andersonprocess.com | H611 | 35.27 | 35.27 | 1 | In Stock | 26 | Dixon Valve & Coupling | 0.85 | 35.27 @ Qty: 1+ |
 | usmegastore.com | H611 | 35.33 | 35.33 | 1 | In Stock | Dixon Valve | 0.85 | 35.33 @ Qty: 1+ | |
 | Megadepot | H611 | 35.33 | 35.33 | 1 | In Stock | Dixon Valve | 0.85 | 35.33 @ Qty: 1+ | |
 | heavydutydepot.com | H611 | 35.33 | 63.594 | 3 | In Stock | Dixon | 35.33 @ Qty: 3+ | ||
 | Zoro | G6557306 | 35.89 | 35.89 | 1 | In Stock | Dixon Valve & Coupling | 3.78 | 35.89 @ Qty: 1+ | |
 | MRO Supply | 110903 | 37.63 | 37.63 | 1 | In Stock | Dixon | 37.63 @ Qty: 1+ | ||
| kscdirect.com | DIX H611 | 37.95 | 37.95 | 1 | In Stock | Dixon Valve & Coupling Co | 37.95 @ Qty: 1+ | |||
| grainger.ca | DIXH611 | 44.48464974 | 44.48464974 | 1 | In Stock | DIXON | 1.0 | 44.48464974 @ Qty: 1+ | ||
 | industrialzone.com | H611 | 46.45 | 120.77 | 5 | In Stock | Dixon | 0.85 | 46.45 @ Qty: 5+ | |
 | hanessupply.com | H611-10639 | 52.27 | 52.27 | 1 | In Stock | Dixon Valve & Coupling | 52.27 @ Qty: 1+ | ||
| motionindustries.com | 00486679 | 61.69 | 61.69 | 1 | In Stock | Dixon Valve & Coupling Company, LLC | 61.69 @ Qty: 1+ | |||
 | Wilson | H611 | 109.23 | 109.23 | 1 | In Stock | Dixon | 109.23 @ Qty: 1+ |
