Description:

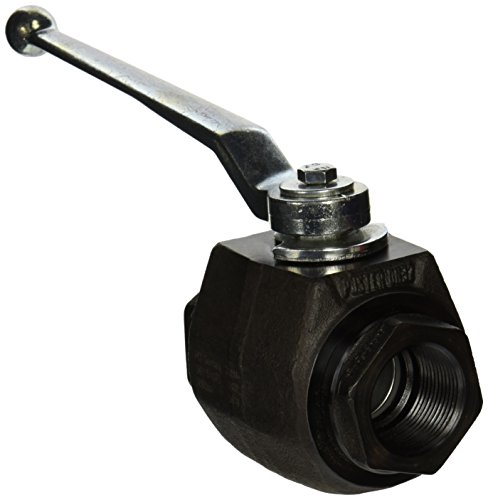

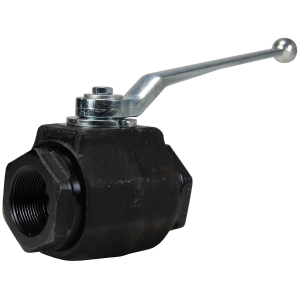

High Pressure Full-Bore Ball Valve
Weight:
8.1
Weight:
8.1 LB
Preferred Price:
341.61
Price:
341.61
Min Simple Price:
193.0
Absolute Min Price:
274.06
Min Price:
274.06
Dimensions:
[10.0, 8.0, 1.0]
qty:
21
simpleSku:
ODg4NQ:::HPBV125
sku:
ODg4NQ::JO:HPBV125@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Ball Material, Ball Valve Basic Body Material, Body Material, Material | Carbon steel |
| Ball Valve Product Group | Manual |
| Body Material | Rugged Carbon Steel |
| Body Style | Inline |
| Brand Name | DIXON? |
| Brand, Manufacturer | Dixon Valve & Coupling |
| Connection | NPT |
| Connection Type, End Style | FNPT |
| Description: | CS Hi-Pressure Full-Bore Ball Valve 1-1/4" Fem NPTF FKM/FPM O'Ring |
| Dimensions | 2-19/32 in L x 4-1/2 in W |
| Features | Blow-out proof stem; Rugged construction |
| Female Thread | NPTF |
| Female Thread Size | 1-1/4", 1-1/4" (32mm) |
| Female Thread Size Metric | 32 mm |
| Female Thread Size, Thread | 1 1/4 in |
| Handle Type | Lever |
| Item | HighPressure FullBore Ball Valve,1-1/4" |
| Length (in) | 2.594 |
| Manufacturer Part Number, MFG Part #:, MPN | HPBV125 |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Max Temp (?F) | 215 |
| Max. Pressure, Pressure Rating, PSI, Working Pressure | 6000 PSI |
| Min. Temp (?F) | -20 |
| Nominal Size | 1-1/4 in |
| Package Quantity | 1/Each |
| Pipe Size | 1 1/4" |
| Pressure range (psi) | 5000+ |
| Product | Ball Valves |
| Product Type | Simple product |
| Seal | FKM/FPM O-ring |
| Seat Material | POM (Polyacetal) |
| Seat, Seat/O-Rings | POM (Polyacetal) ball seats |
| Series | HPBV |
| Softgoods Material | FKM/FPM/POM Polyacetal |
| Stem Type | Blowout Proof |
| Temp. Range | -20 Degrees F to 215 Degrees F |
| Temperature Range | -20?F to 215?F (-29?C to 101.6?C) |
| Temperature range | -20F to 215F (-29C to 101.6C) |
| Temperature Rating | -20 to 215?F, -20 to 215 deg F |
| Type | Full Bore High Pressure |
| Valve Structure | Full-Bore |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 8.100000 |
| Weight Lb | 8.1000 |
| Width (in) | 4.5 |
| Working pressure (psi) | 6000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-HPBV125 | 193.0 | 193.0 | 1 | In Stock | DIXON VALVE | 193.0 @ Qty: 1+ | ||
 | MRO Supply | 111051 | 218.61 | 218.61 | 1 | In Stock | Dixon | 218.61 @ Qty: 1+ | ||
 | usmegastore.com | HPBV125 | 218.7 | 218.7 | 1 | In Stock | Dixon Valve | 8.1 | 218.7 @ Qty: 1+ | |
 | Megadepot | HPBV125 | 218.7 | 218.7 | 1 | In Stock | Dixon Valve | 8.1 | 218.7 @ Qty: 1+ | |
 | heavydutydepot.com | HPBV125 | 218.7 | 218.7 | 1 | In Stock | Dixon | 218.7 @ Qty: 1+ | ||
 | Zoro | G6565231 | 235.99 | 235.99 | 1 | In Stock | Dixon Valve & Coupling | 0.16 | 235.99 @ Qty: 1+ | |
 | andersonprocess.com | HPBV125 | 239.66 | 239.66 | 1 | In Stock | 26 | Dixon Valve & Coupling | 8.1 | 239.66 @ Qty: 1+ |
| kscdirect.com | DIX HPBV125 | 262.57 | 262.57 | 1 | In Stock | Dixon Valve & Coupling Co | 262.57 @ Qty: 1+ | |||
 | hanessupply.com | HPBV125-10639 | 353.01 | 353.01 | 1 | In Stock | Dixon Valve & Coupling | 353.01 @ Qty: 1+ | ||
 | industrialzone.com | HPBV125 | 358.09 | 358.09 | 1 | In Stock | Dixon | 8.1 | 358.09 @ Qty: 1+ | |
| motionindustries.com | 06129108 | 374.11 | 374.11 | 1 | In Stock | Dixon Valve & Coupling Company, LLC | 374.11 @ Qty: 1+ | |||
 | Wilson | HPBV125 | 772.95 | 772.95 | 1 | In Stock | Dixon | 772.95 @ Qty: 1+ |
