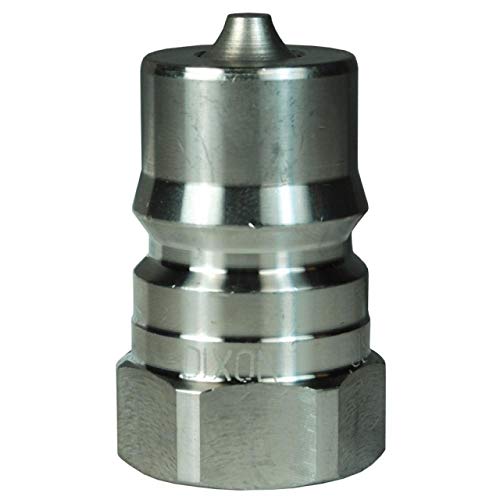

DIXON HS4F4-S 1/2" STEAM NIPPLE 1/2" NPTF 303SS 100624-4 - MROSupply.com
Weight:
0.018125
Weight:
0.018125 LB
Preferred Price:
284.26
Price:
284.26
Min Simple Price:
40.15
Absolute Min Price:
228.05
Min Price:
228.05
Dimensions:
[2.0, 2.0, 2.0]
qty:
1
simpleSku:
NDkxNQ:::HS4F4-S
sku:
NDkxNQ::QR:HS4F4-S@x4
condition:
11
seller:
Megadepot
amzMan:
dixon valve
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed exclusively for steam applications |
| Body Size | 1/2" |
| Brand | Dixon Valve & Coupling |
| Connection | Female NPT |
| Construction | Machined components are manufactured using solid bar stock; Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Special high-temp EPDM O-rings designed for steam service |
| Data | Rated to 200 PSI gauge saturated steam 388?F; 1-1/16" Hex Size |
| Description: | 1/2 ISO-B STEAM PLUG, 1/2 F-NPTF 303SS |
| Dimensions | 1.17 in OD |
| End Style, Thread | Female NPTF |
| Hex | 1-1/16" |
| Hex Size | 1-1/16 in |
| Interchange | Interchangeable to ISO7241 Series 'B'; Parker 60-Series Steam Couplings |
| Length | 1.94" (49.3mm), 1.94 in, 1.94" |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | 303 Stainless Steel |
| Max Temp (?F) | 400 |
| Maximum OD | 1.17" (29.7mm) |
| MFG Part #:, MPN | HS4F4-S |
| Min. Temp (?F) | -70 |
| Nominal Size | 1/2-14 |
| Pressure Rating | See Product Details, 200 psi |
| Product | Plugs |
| Product Type | Simple product |
| Safety Notes | Maximum working pressure has been calculated using standard saturated steam at 194?C (382?F) for general purpose continuous service. For advanced operating pressure or super-heated steam applications, Contact Anderson Process for further information. Do not disconnect under pressure! |
| Series | DQC HS, HS-Series ISO-B Steam |
| Temperature Range | -70?F to +400?F (-57?C to +204?C) |
| Temperature Rating | -70 to 400 deg F |
| Thread | NPTF |
| Thread Size | 1/2"-14 |
| Type | Interchange |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.290000 |
| Weight Lb | 0.2900 |
