mpn:
brand:
manufacturer:
MPN:
Description:

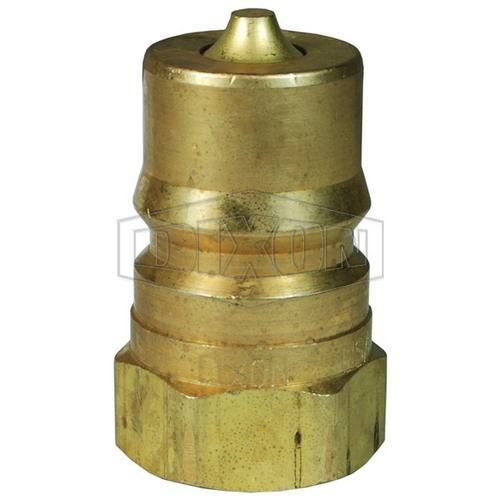

DIXON HS8BF8-B 1" STEAM NIPPLE 1" BSPP BRASS 100538-8 - MROSupply.com
Weight:
1.76
Weight:
1.76 LB
Price:
31.5
qty:
21
simpleSku:
ODEwMg:::HS8BF8-B
sku:
ODEwMg::XR:HS8BF8-B@y0
condition:
11
seller:
Megadepot
amzMan:
dixon valve & coupling
DropShip:
True
Dimensions:
[3.0, 3.0, 3.0]
Attributes
| Key | Value |
|---|---|
| Application | Designed exclusively for steam applications |
| Body Size | 1" |
| Brand | Dixon Valve & Coupling |
| Connection | Female BSP |
| Construction | Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Special high-temp EPDM O-rings designed for steam service |
| Data | Rated to 200 PSI gauge saturated steam 388?F; 1-5/8" Hex Size |
| Description: | 1 ISO-B STEAM PLUG, 1 F-BSPP BRASS |
| Dimensions | 1-3/4 in OD |
| End Style | Female BSPP |
| Hex | 1-5/8" |
| Hex Size | 1-5/8 in |
| Interchange | Interchangeable to ISO7241 Series 'B'; Parker 60-Series Steam Couplings |
| Length | 2.87" (72.9mm), 2.87", 2.87 in |
| Manufacturer | Dixon Valve & Coupling Co |
| Material | Brass |
| Max Temp (?F) | 400 |
| Maximum OD | 1.75" (44.5mm) |
| MFG Part #: | HS8BF8-B |
| Min. Temp (?F) | -70 |
| MPN | HS8BF8-B |
| Nominal Size | 1-11 |
| Optional Pkg/Box Qty | 10 |
| Pressure Rating | 200 psi, Rated to 200 PSI gauge saturated steam 382?F (194?C) |
| Product | Plugs |
| Product Type | Simple product |
| Safety Notes | Maximum working pressure has been calculated using standard saturated steam at 194?C (382?F) for general purpose continuous service. For advanced operating pressure or super-heated steam applications, Contact Anderson Process for further information. Do not disconnect under pressure! |
| Series | DQC HS, HS-Series ISO-B Steam |
| Supplier: | Dixon Valve & Coupling Co |
| Temperature Range | -70?F to +400?F (-57?C to +204?C) |
| Temperature Rating | -70 to 400 deg F |
| Thread | Female BSPP |
| Thread Size | 1"-11 |
| Type | Interchange |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 0.760000 |
| Weight Lb | 0.7600 |
