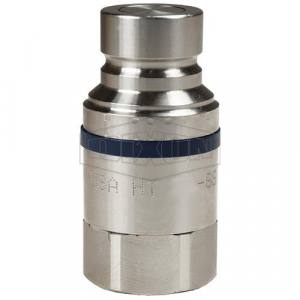

DIXON HT8F10-SS 1" ISO16028 NIP 316SS 1-1/4" NPTF 101023-8-10 - MROSupply.com
Weight:
0.115
Weight:
0.115 LB
Preferred Price:
542.67
Price:
542.67
Min Simple Price:
306.6
Absolute Min Price:
435.37
Min Price:
435.37
Dimensions:
[4.0, 4.0, 4.0]
qty:
21
simpleSku:
NzYzNA:::HT8F10-SS
sku:
NzYzNA::2F:HT8F10-SS@y0
condition:
11
seller:
Megadepot
amzMan:
dixon valve & coupling
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Body Size | 1" |
| Brand Name | DIXON? |
| Brand, Manufacturer | Dixon Valve & Coupling |
| Connection | Female NPT |
| Construction | Machined components are manufactured using solid bar stock; Has Nitrile-Energized PTFE valve seals, with a temperature range of -40? to +250?F; Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of -40?F to +250?F; PTFE or TPC-ET Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage. |
| Data | 2" Hex Size |
| Description: | 1 ISO16028 PLUG, 1-1/4 F-NPTF 316SS |
| Domestic/Import | Domestic |
| End Style | FNPT |
| Features | High flow performance, compact profile; Easily rebuildable!; High strength laser-cut valve guide maximizes valve stability while minimizing flow restriction. Improved sealing system incorporates a high performance molded polyurethane or O-ring energized PTFE valve seal. |
| Hex | 2" |
| Hex Size | 2 in |
| Interchange | Interchangeable to ISO16028; Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, Faster FFH/2FFN/2FFI, Safeway FF49-Series |
| Length | 3.61" (91.7mm), 3.61 in, 3.61" |
| Length (in) | 3.61 |
| Manufacturer Part Number, MFG Part #:, MPN | HT8F10-SS |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Material | 316 Stainless Steel |
| Maximum OD | 2.19" (55.6mm) |
| Nominal Size | 1/4 in - 18, 1/4-18 |
| Options | Contact Anderson Process for all available option adders; Oxy-clean treatment is available |
| Package Quantity | 1/Each |
| Pressure Rating | 3500 psi |
| Product | Plugs |
| Product Type | Simple product |
| Series | HT-Series Flushface, HT Series |
| Specifications | Rated pressure for connected 316 Stainless Steel Coupler and 316 Stainless Steel Plug: 2,920 PSI (201 bar) Maximum Working and 14,600 PSI (1,007 bar) burst |
| Thread | Female NPTF, NPTF |
| Thread Size | 1-1/4"-11-1/2", 1-1/4" - 11-1/2 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 1.840000 |
| Weight Lb | 1.8400 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Megadepot | HT8F10-SS | 306.6 | 306.6 | 1 | In Stock | Dixon Valve | 1.84 | 306.6 @ Qty: 1+ | |
 | usmegastore.com | HT8F10-SS | 306.6 | 306.6 | 1 | In Stock | Dixon Valve | 1.84 | 306.6 @ Qty: 1+ | |
 | heavydutydepot.com | HT8F10-SS | 306.6 | 306.6 | 1 | In Stock | Dixon | 306.6 @ Qty: 1+ | ||
 | andersonprocess.com | HT8F10-SS | 330.75 | 330.75 | 1 | In Stock | 26 | Dixon Valve & Coupling | 1.84 | 330.75 @ Qty: 1+ |
| kscdirect.com | DIX HT8F10-SS | 362.37 | 362.37 | 1 | In Stock | Dixon Valve & Coupling Co | 362.37 @ Qty: 1+ | |||
 | MRO Supply | 2934787 | 367.17 | 367.17 | 1 | In Stock | 14 | Dixon | 1.84 | 367.17 @ Qty: 1+ |
 | hanessupply.com | HT8F10-SS-10639 | 660.04 | 660.04 | 1 | In Stock | Dixon Valve & Coupling | 660.04 @ Qty: 1+ | ||
 | Wilson | HT8F10-SS | 1094.09 | 1094.09 | 1 | In Stock | Dixon | 1094.09 @ Qty: 1+ |
