Description:

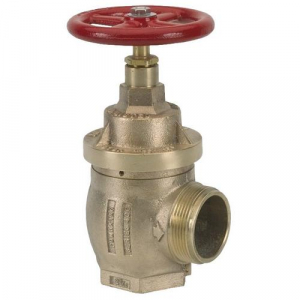

NAPRAV150F-25 PRV 1.5 FNPT X 1.5 MNST F/S PRES REDUCE ANGLE VLV - TYPE 25 UL
Weight:
5.0
Weight:
5.0 LB
Preferred Price:
617.73
Price:
617.73
Min Simple Price:
349.0
Absolute Min Price:
495.58
Min Price:
495.58
Dimensions:
[20.0, 20.0, 10.0]
qty:
21
simpleSku:
ODg4NQ:::NAPRAV150F-25
sku:
ODg4NQ::LM:NAPRAV150F-25@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Application | 1-1/2" size reduces inlet pressure of 300 PSI (2069 kPa) or less to working pressures of 10 through 175 PSI (69-1207 kPa). |
| Brand | Dixon Valve & Coupling |
| Construction | Cast Brass |
| Description | Calculated setting: 25 |
| Features | Tamper resistant; True combination shut-off and pressure reducing valve |
| Inlet | 1-1/2" female NPT |
| Inlet / Outlet | 1-1/2" female NPT / 1-1/2" male NST (NH) |
| Material | Cast Brass |
| Maximum Operating Pressure | 300 PSI |
| MPN | NAPRAV150F-25 |
| Options | Valves are available with a tamper proof switch as an accessory device to hasten valve operation while monitoring its open condition. The complete switch, with bracket and housing, is available for field mounting. Consult Anderson Process for price and availability. |
| Outlet | 1-1/2" male NST (NH) |
| Product | Pressure Reducing Valves |
| Product Type | Simple product |
| PSI | 300 PSI |
| Safety Notes | Dixon Pressure Reducing Valves are automatic valves. Debris is the largest single cause of valve malfunction. It is imperative all debris be flushed from the system prior to being placed into service. |
| Specifications | UL listed for Automatic Sprinkler Systems as floor or zone control valve; Standpipe Systems, Class I, II and III; Automatic Check Valve for Dual Riser Systems; Approved by the New York City Board of Standards and Appeals, approval # MEA 54-07-E; Approved by the City of Los Angeles and the City of San Francisco (ULC 2-1/2") |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 3.150000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-NAPRAV150F-25 | 349.0 | 349.0 | 1 | In Stock | DIXON VALVE | 349.0 @ Qty: 1+ | ||
 | usmegastore.com | NAPRAV150F-25 | 382.5 | 382.5 | 1 | In Stock | Dixon Valve | 382.5 @ Qty: 1+ | ||
 | Megadepot | NAPRAV150F-25 | 382.5 | 382.5 | 1 | In Stock | Dixon Valve | 382.5 @ Qty: 1+ | ||
 | heavydutydepot.com | NAPRAV150F-25 | 382.5 | 382.5 | 1 | In Stock | Dixon | 382.5 @ Qty: 1+ | ||
 | MRO Supply | 2072102 | 390.06 | 390.06 | 1 | In Stock | Dixon | 390.06 @ Qty: 1+ | ||
 | andersonprocess.com | NAPRAV150F-25 | 462.93 | 462.93 | 1 | In Stock | 26 | Dixon Valve & Coupling | 3.15 | 462.93 @ Qty: 1+ |
 | industrialzone.com | NAPRAV150F-25 | 632.38 | 632.38 | 1 | In Stock | Dixon | 0.1 | 632.38 @ Qty: 1+ | |
 | Wilson | NAPRAV150F-25 | 1637.78 | 1637.78 | 1 | In Stock | Dixon | 1637.78 @ Qty: 1+ |
