mpn:
brand:
manufacturer:
MPN:
Description:

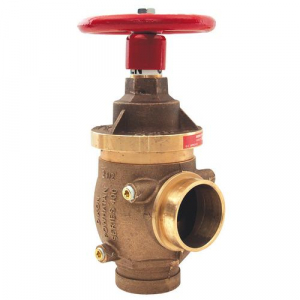

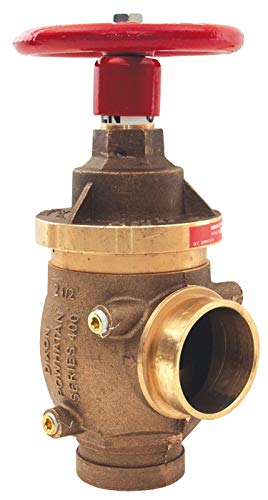

Factory Set Pressure Reducing Brass Angle Valve Grooved x Grooved
Weight:
5.0
Weight:
5.0 LB
Preferred Price:
1000.05
Price:
1000.05
Min Simple Price:
565.0
Absolute Min Price:
802.3
Min Price:
802.3
Dimensions:
[20.0, 20.0, 10.0]
qty:
21
simpleSku:
ODg4NQ:::NAPRAVGT250-75
sku:
ODg4NQ::8O:NAPRAVGT250-75@y0
condition:
11
seller:
toolfetch.com
amzMan:
dixon
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | 2-1/2" size reduces inlet pressures of 400 PSI (2758 kPa) or less to desired working pressures from 20 through 175 PSI (138-1207 kPa) under discharge or static conditions. |
| Body Material, Material | Cast brass |
| Brand | Dixon Valve & Coupling |
| Construction | Cast brass; (4) drilled and tapped bosses: two on each side for upstream and downstream pressure monitoring. Saves installation time and provides a cleaner appearance. |
| Description | Calculated setting: 75 |
| Description: | 2.5 Grv x 2.5 Grv - Type 75 D&T Factory Set Pressure Reducing Valve |
| Dimensions | 12.5 in H x 6.2 in W |
| Domestic/Import | Domestic |
| End Style | Grooved |
| Features | Tamper resistant; True combination shut-off and pressure reducing valve |
| Inlet / Outlet | 2-1/2" grooved / 2-1/2" grooved |
| Inlet, Outlet | 2-1/2" grooved |
| Inlet, Outlet | 2-1/2 in grooved |
| Manufacturer, Supplier: | Dixon Valve & Coupling Co |
| Max operating pressure (psi) | 400 |
| Maximum Operating Pressure, Pressure Range, PSI | 400 PSI |
| MFG Part #:, MPN | NAPRAVGT250-75 |
| Nominal Size | 2-1/2 in |
| Options | Valves are available with a tamper proof switch as an accessory device to hasten valve operation while monitoring its open condition. The complete switch, with bracket and housing, is available for field mounting. Consult Anderson Process for price and availability. |
| Product | Pressure Reducing Valves |
| Product Type | Simple product |
| Specifications | UL listed for Automatic Sprinkler Systems as floor or zone control valve; Standpipe Systems, Class I, II and III; Automatic Check Valve for Dual Riser Systems; Approved by the New York City Board of Standards and Appeals, approval # MEA 54-07-E; Approved by the City of Los Angeles and the City of San Francisco (ULC 2-1/2") |
| Type | Type 75 |
| WARNING! | This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information go to www.P65Warnings.ca.gov |
| Weight | 3.150000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | toolfetch.com | DIX-NAPRAVGT250-75 | 565.0 | 565.0 | 1 | In Stock | DIXON VALVE | 565.0 @ Qty: 1+ | ||
 | usmegastore.com | NAPRAVGT250-75 | 615.0 | 615.0 | 1 | In Stock | Dixon Valve | 615.0 @ Qty: 1+ | ||
 | Megadepot | NAPRAVGT250-75 | 615.0 | 615.0 | 1 | In Stock | Dixon Valve | 615.0 @ Qty: 1+ | ||
 | heavydutydepot.com | NAPRAVGT250-75 | 615.0 | 615.0 | 1 | In Stock | Dixon | 615.0 @ Qty: 1+ | ||
 | MRO Supply | 2072136 | 631.15 | 631.15 | 1 | In Stock | Dixon | 631.15 @ Qty: 1+ | ||
 | andersonprocess.com | NAPRAVGT250-75 | 749.03 | 749.03 | 1 | In Stock | 26 | Dixon Valve & Coupling | 3.15 | 749.03 @ Qty: 1+ |
| kscdirect.com | DIX NAPRAVGT250-75 | 788.38 | 788.38 | 1 | In Stock | Dixon Valve & Coupling Co | 788.38 @ Qty: 1+ | |||
 | industrialzone.com | NAPRAVGT250-75 | 1037.35 | 1037.35 | 1 | In Stock | Dixon | 0.1 | 1037.35 @ Qty: 1+ | |
 | Wilson | NAPRAVGT250-75 | 2446.2 | 2446.2 | 1 | In Stock | Dixon | 2446.2 @ Qty: 1+ |
